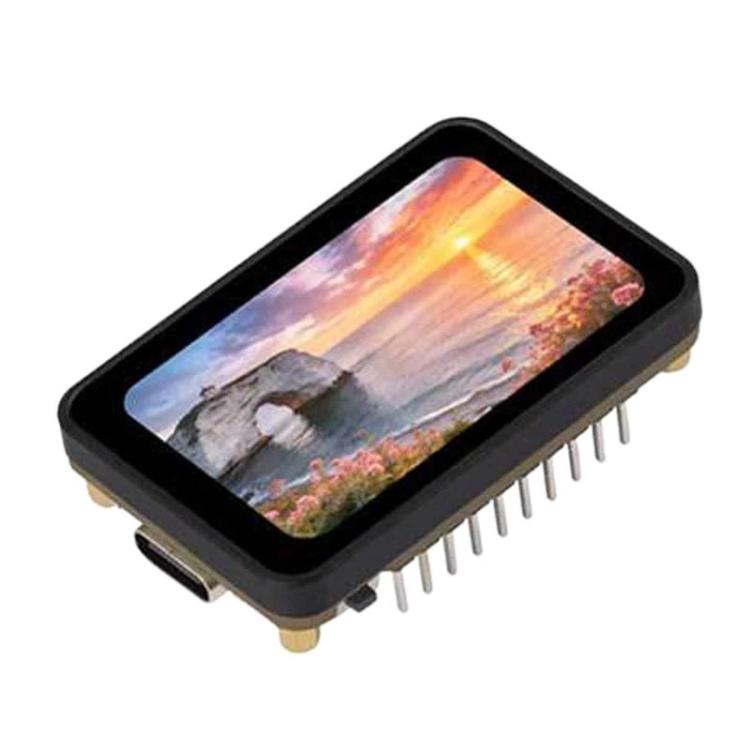

Waveshare ESP32-C6 1.64 Inch AMOLED Touch Display Development Board, 280 X 456 Resolution, Supports Wi-Fi 6 And BLE 5, Spec: Welded


1. Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor has a clock speed up to 160 MHz, while the low-power processor can reach up to 20 MHz
2. Integrated with Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, it has excellent radio frequency performance. 3. The board is equipped with an internal antenna and reserved solder pads, allowing it to be configured as an external antenna

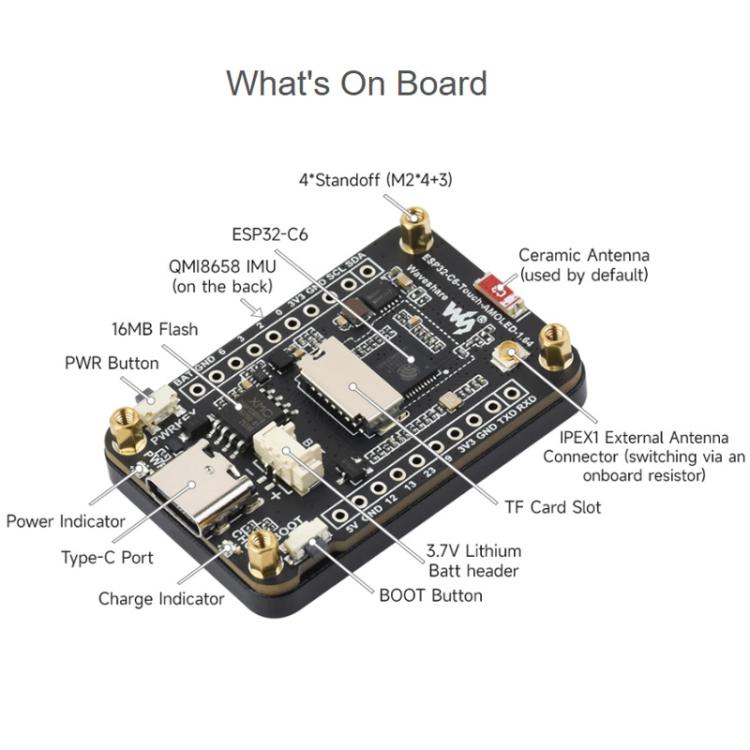

4. Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and an external 16MB Flash

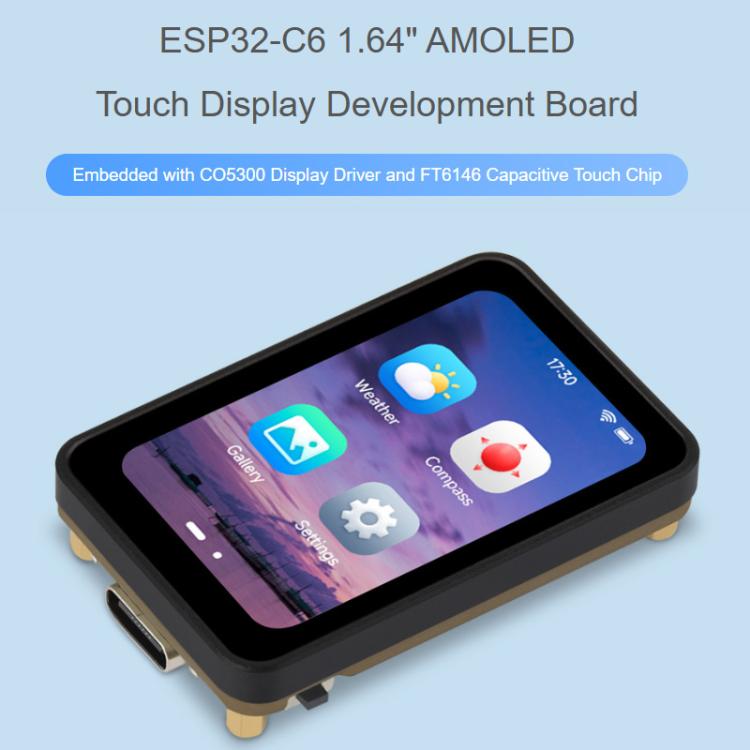

5. Onboard a 1.64-inch AMOLED capacitive touch screen with a resolution of 280 x 456 and 16.7M color

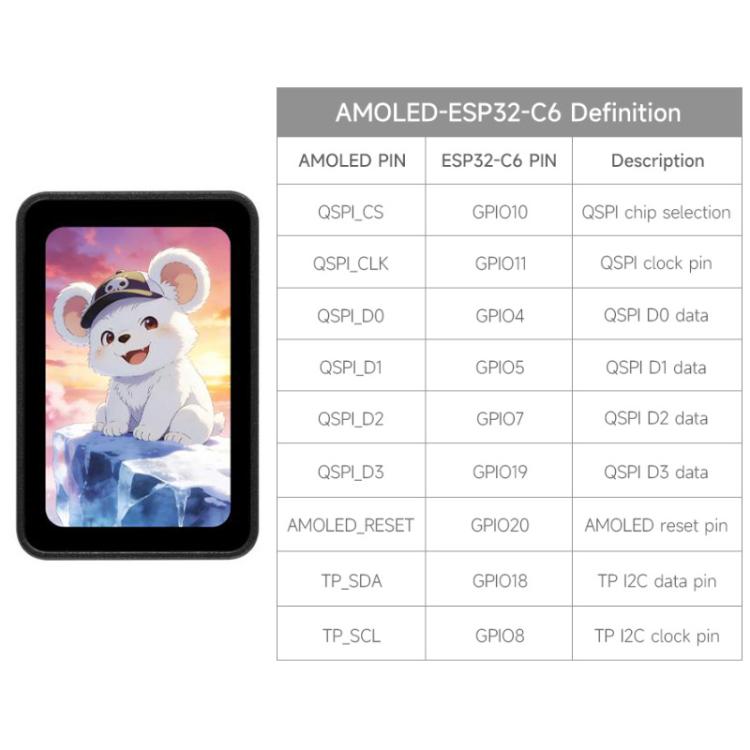

6. The AMOLED screen uses the QSPI interface for display, and the capacitive touch uses the I2C interface
7. Onboard a QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture and count steps, etc
8. Onboard PWR and BOOT side buttons, BOOT supports custom key functions, making development more flexible
9. Onboard a 3.7V MX1.25 lithium battery charging and discharging interface
10. Onboard a Micro SD card slot, allowing external SD card storage for pictures or files
11. Onboard a USB Type-C interface, which can be used for power supply and download debugging, facilitating development

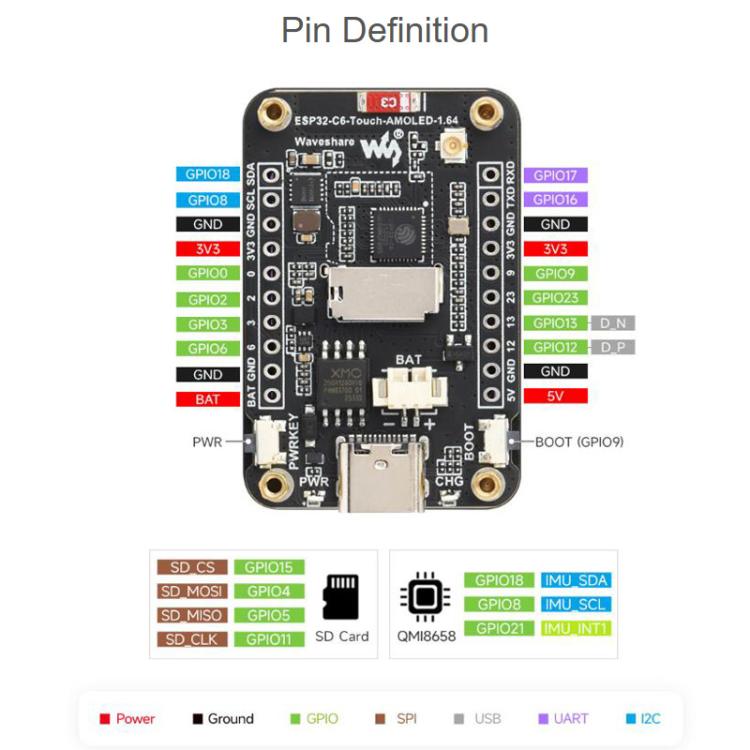

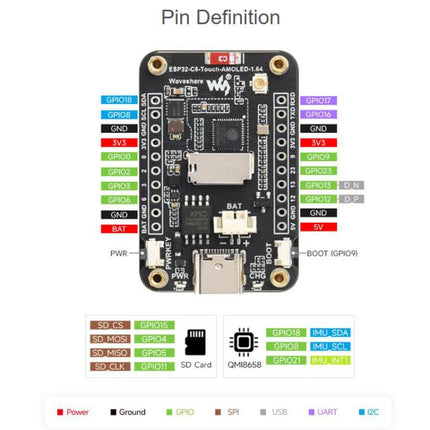

12. Exposed I2C, UART, and USB pins, available for external devices and debugging, allowing flexible configuration of peripheral functions
13. The screen adopts a CNC processing structure with edge bonding, featuring a delicate and soft texture, and overall beauty and durability

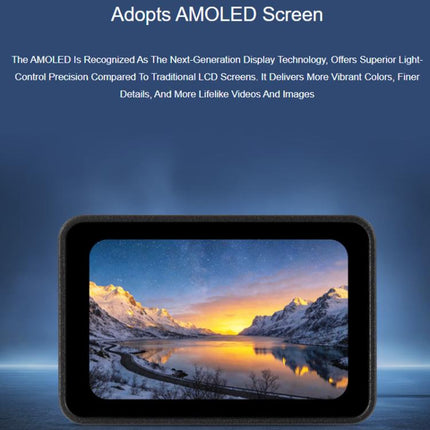

AMOLED screen parameters
1. Display panel: AMOLED
2. Display resolution: 280 x 456 pixels
3. Display brightness: 350 cd/square meter
4. Communication interface: QSPI
5. Touch: supported
6. Display size: 1.64 inches
7. Display colors: 16.7M
8. Contrast ratio: 60000:1
9. Driving IC: CO5300
10. Touch IC: FT6146


Specification:
Package Weight
One Package Weight 0.03kgs / 0.07lb
One Package Size 8cm * 6cm * 4cm / 3.15inch * 2.36inch * 1.57inch
Qty per Carton 288
Carton Weight 10.00kgs / 22.05lb
Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
Loading Container 20GP: 412 cartons * 288 pcs = 118656 pcs
40HQ: 958 cartons * 288 pcs = 275904 pcs

Waveshare ESP32-C6 1.64 Inch AMOLED Touch Display Development Board, 280 X 456 Resolution, Supports Wi-Fi 6 And BLE 5, Spec: Welded

Product form

SKU: TBD0606829602

  • In stock (Processing Time 1 - 72 hours)

€51,00

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor has a clock speed up to 160 MHz, while the low-power processor can reach up to 20 MHz
    2. Integrated with Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, it has excellent radio frequency performance. 3. The board is equipped with an internal antenna and reserved solder pads, allowing it to be configured as an external antenna
    4. Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and an external 16MB Flash
    5. Onboard a 1.64-inch AMOLED capacitive touch screen with a resolution of 280 x 456 and 16.7M color
    6. The AMOLED screen uses the QSPI interface for display, and the capacitive touch uses the I2C interface
    7. Onboard a QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture and count steps, etc
    8. Onboard PWR and BOOT side buttons, BOOT supports custom key functions, making development more flexible
    9. Onboard a 3.7V MX1.25 lithium battery charging and discharging interface
    10. Onboard a Micro SD card slot, allowing external SD card storage for pictures or files
    11. Onboard a USB Type-C interface, which can be used for power supply and download debugging, facilitating development
    12. Exposed I2C, UART, and USB pins, available for external devices and debugging, allowing flexible configuration of peripheral functions
    13. The screen adopts a CNC processing structure with edge bonding, featuring a delicate and soft texture, and overall beauty and durability

    AMOLED screen parameters
    1. Display panel: AMOLED
    2. Display resolution: 280 x 456 pixels
    3. Display brightness: 350 cd/square meter
    4. Communication interface: QSPI
    5. Touch: supported
    6. Display size: 1.64 inches
    7. Display colors: 16.7M
    8. Contrast ratio: 60000:1
    9. Driving IC: CO5300
    10. Touch IC: FT6146


    Specification:
    Package Weight
    One Package Weight 0.03kgs / 0.07lb
    One Package Size 8cm * 6cm * 4cm / 3.15inch * 2.36inch * 1.57inch
    Qty per Carton 288
    Carton Weight 10.00kgs / 22.05lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 288 pcs = 118656 pcs
    40HQ: 958 cartons * 288 pcs = 275904 pcs
