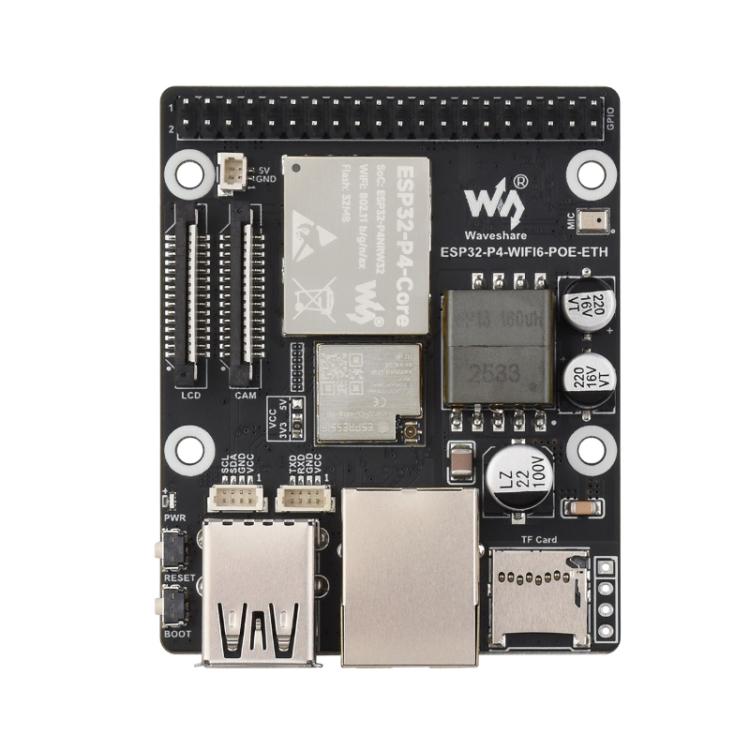

WAVESHARE ESP32-P4-WIFI6-POE-ETH Development Board Supports Power Over Ethernet (PoE)(Package C)


1. It provides a rich set of human-machine interface (HMI) interfaces, including MIPI-CSI (integrated image signal processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI, and also supports USB OTG 2.0 HS. It integrates an RJ45 Ethernet interface with PoE functionality.
2. Equipped with peripherals such as USB 2.0, MIPI-CSI/MIPI-DSI, and H.264 encoding, it meets the needs of low-cost, high-performance, and low-power multimedia development.
3. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security.
4. The ESP32-P4-WIFI6-POE-ETH is designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and I/O expansion.
5. Powerful image and voice processing capabilities, with image and voice processing interfaces including JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder.
6. The board provides common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminals.
7. The board features a 2 × 20 pin header, providing 28 remaining programmable GPIOs.
8. Security mechanisms include secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and privilege separation.

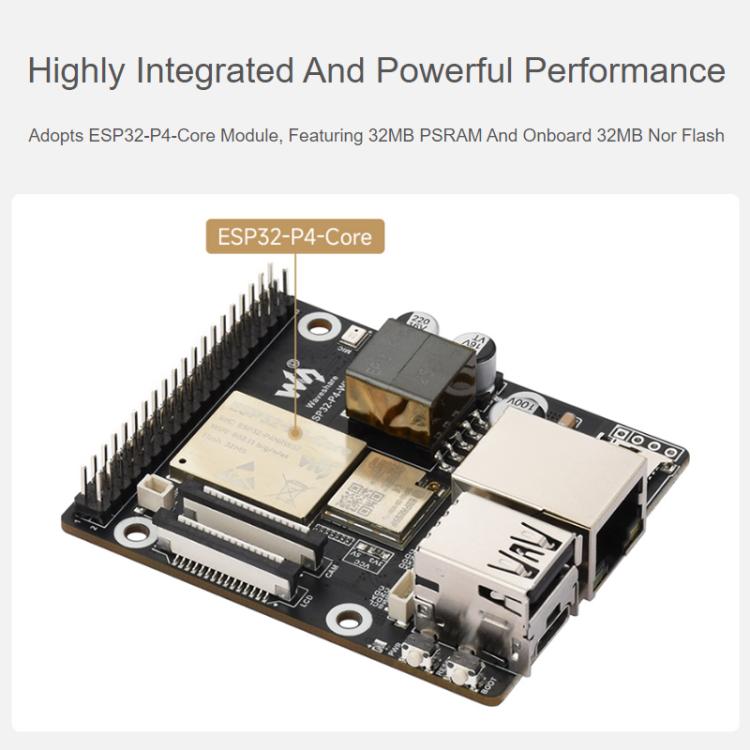

9. The development board uses the ESP32-P4-Core module, stacked with 32MB PSRAM, and has 32MB Nor Flash onboard.

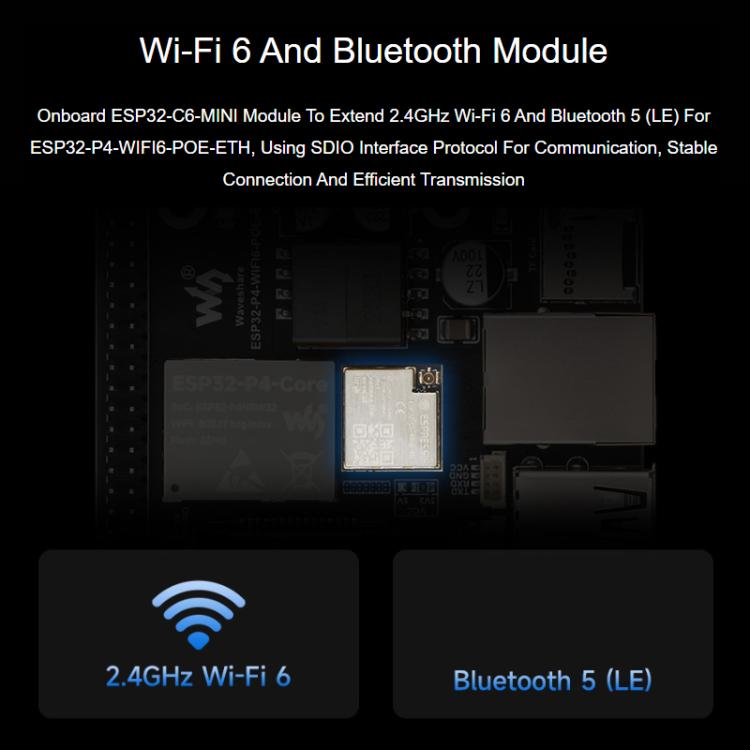

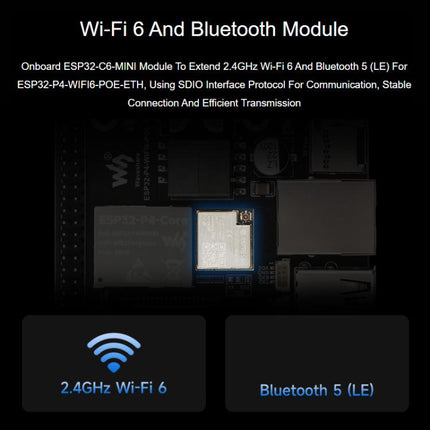

10. Supports Wi-Fi 6 and Bluetooth modules, with an onboard ESP32-C6-MINI module, extending 2.4GHz Wi-Fi 6 and Bluetooth 5 capabilities to the ESP32-P4. (LE), communicates using the SDIO interface protocol, ensuring stable connection and efficient transmission.

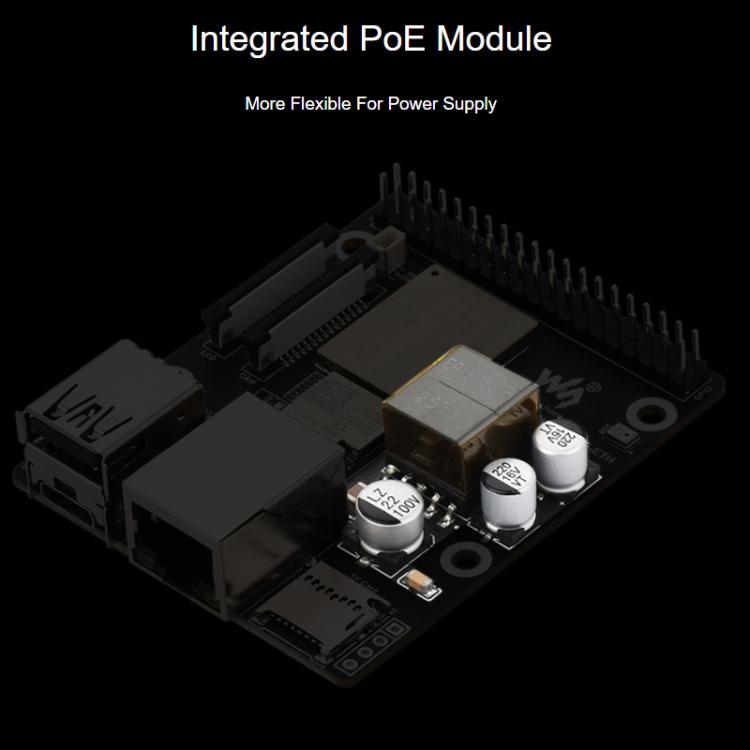

11. Integrated PoE module provides more flexible power supply options for the development board.

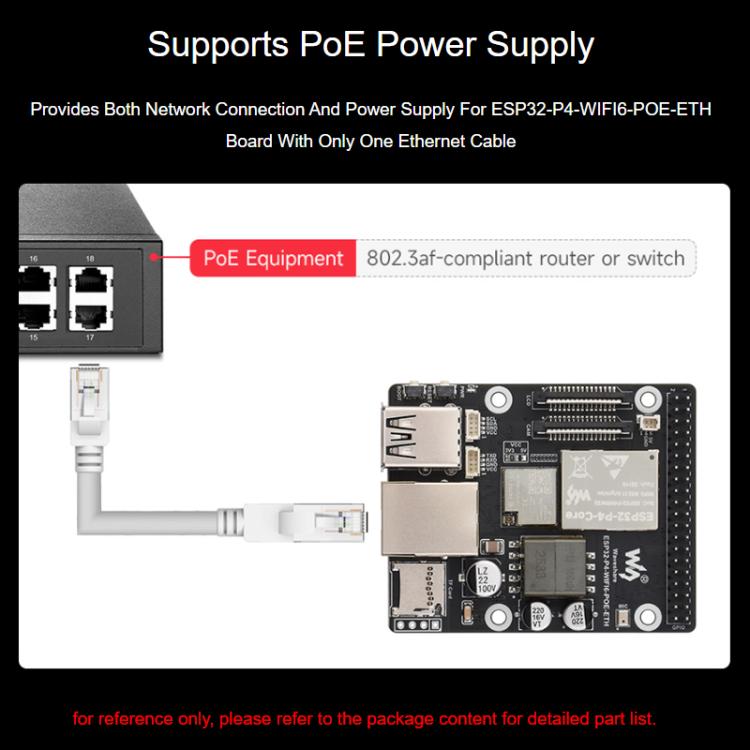

12. Only one network cable connected to a PoE device is needed for the ESP32-P4-WIFI6-POE-ETH to achieve both networking and power supply.
13. Dimensions: 55x68mm

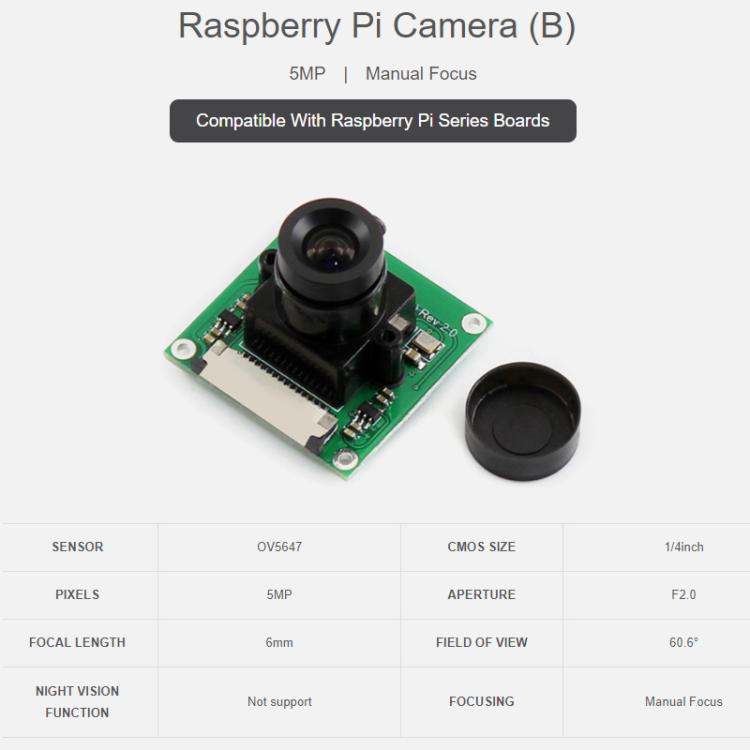

Raspberry Pi camera module B:
1. Image sensor: OV5647
2. CMOS size: 1/4 inch
3. Pixels: 5 million
4. Aperture: F2.0
5. Focal length: 6mm
6. Diagonal field of view: 60.6 degrees
7. Infrared night vision: not supported
8. Focusing method: manual focus

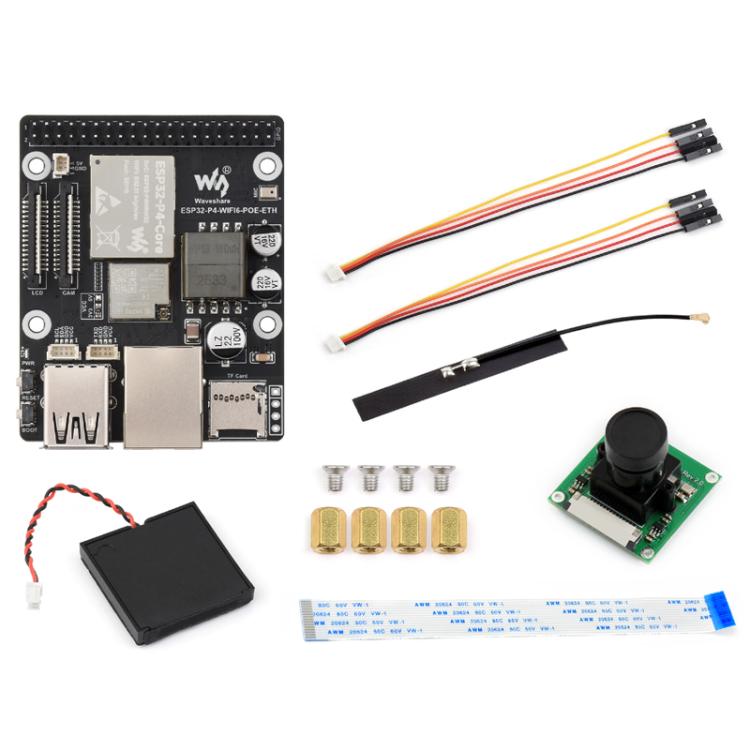

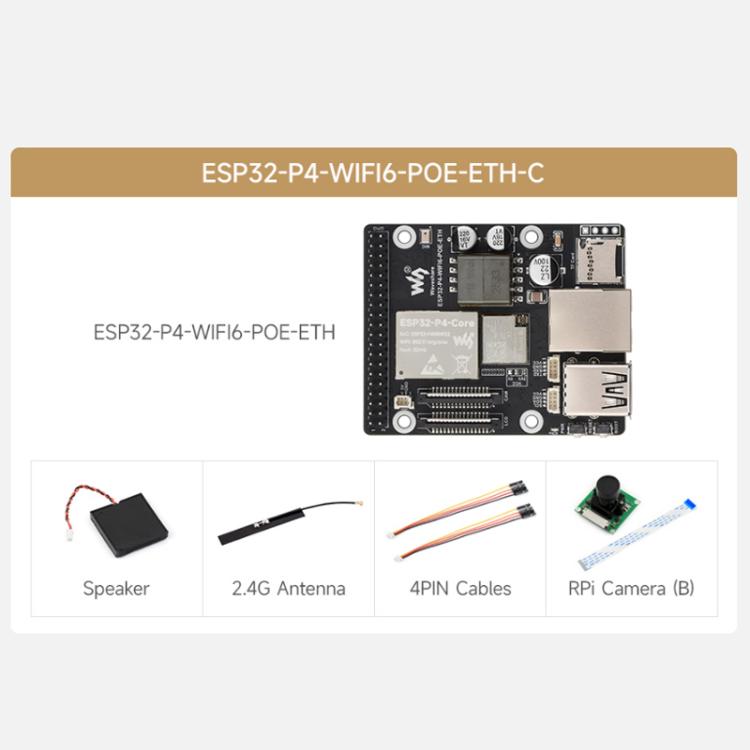

Package contents:
ESP32-P4-WIFI6-POE-ETH x 1
SH1.0 4PIN connecting cable (approx. 150mm) x 2
1217 cavity speaker 8Ω 2W x 1
2.4G antenna x 1
RPi camera (B) x 1
FFC 15PIN ribbon cable x 1
Screw pack x 1


Specification:
Package Weight
One Package Weight 0.20kgs / 0.45lb
One Package Size 10cm * 10cm * 5cm / 3.94inch * 3.94inch * 1.97inch
Qty per Carton 72
Carton Weight 15.50kgs / 34.17lb
Carton Size 42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
Loading Container 20GP: 620 cartons * 72 pcs = 44640 pcs
40HQ: 1439 cartons * 72 pcs = 103608 pcs
