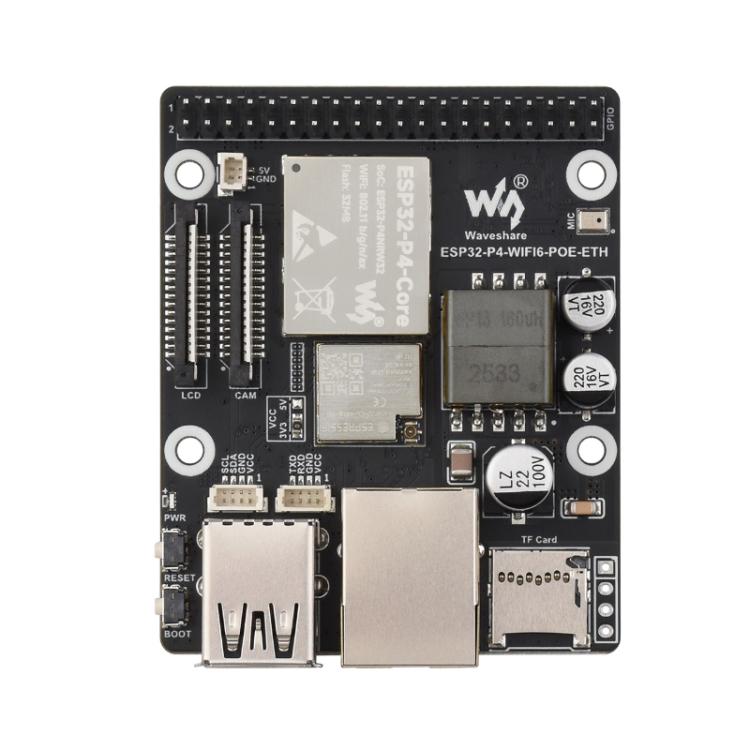

WAVESHARE ESP32-P4-WIFI6-POE-ETH Development Board Supports Power Over Ethernet (PoE)(Package D)


1. It provides a rich set of human-machine interface (HMI) interfaces, including MIPI-CSI (integrated image signal processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI, and also supports USB OTG 2.0 HS. It integrates an RJ45 Ethernet interface with PoE functionality.
2. Equipped with peripherals such as USB 2.0, MIPI-CSI/MIPI-DSI, and H.264 encoding, it meets the needs of low-cost, high-performance, and low-power multimedia development.
3. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security.
4. The ESP32-P4-WIFI6-POE-ETH is designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and I/O expansion.
5. Powerful image and voice processing capabilities, with image and voice processing interfaces including JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder.
6. The board provides common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, and RTC battery terminals.

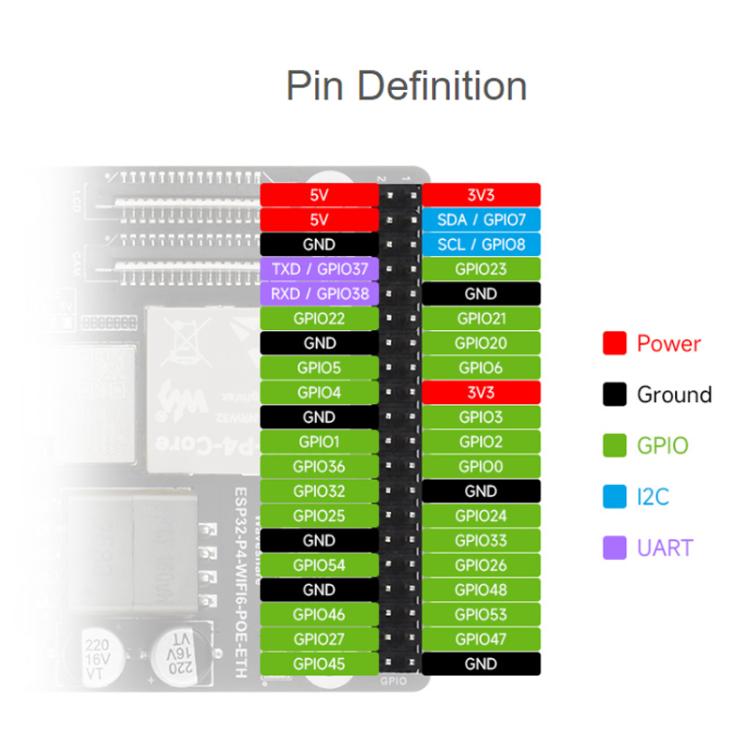

7. The board features a 2 × 20 pin header, providing 28 remaining programmable GPIOs.
8. Security mechanisms include secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and privilege separation.

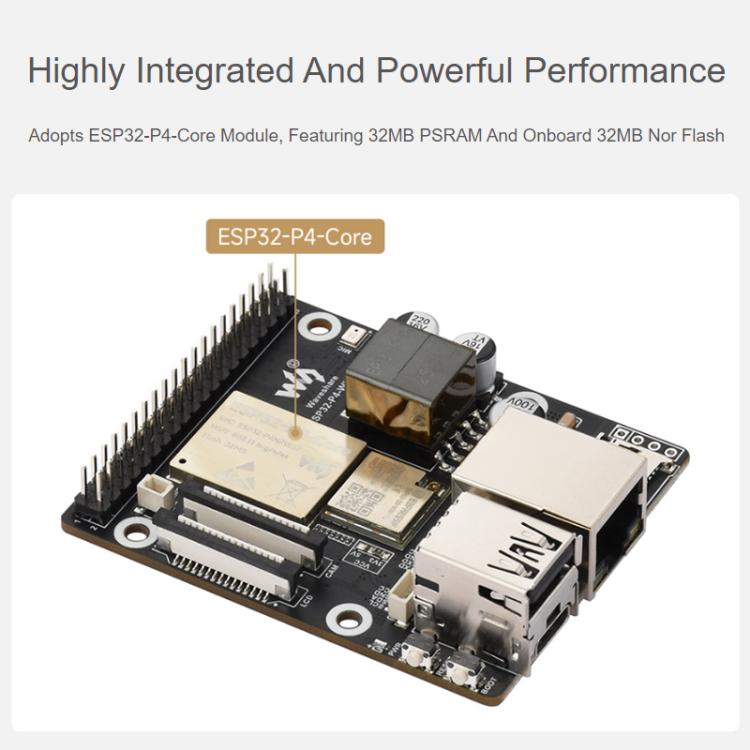

9. The development board uses the ESP32-P4-Core module, stacked with 32MB PSRAM, and has 32MB Nor Flash onboard.

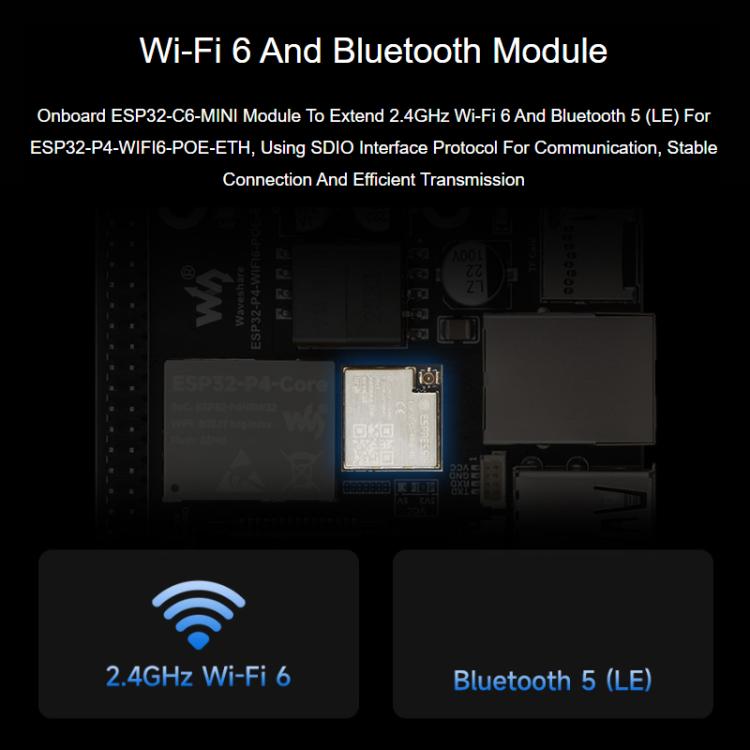

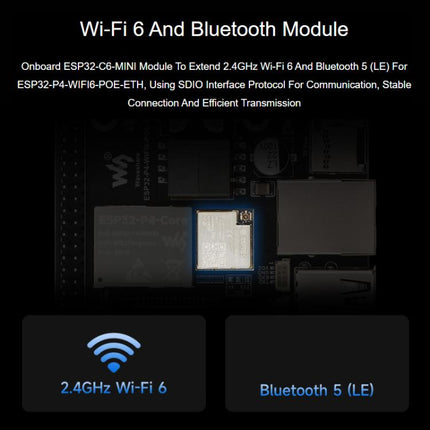

10. Supports Wi-Fi 6 and Bluetooth modules, with an onboard ESP32-C6-MINI module, extending 2.4GHz Wi-Fi 6 and Bluetooth 5 capabilities to the ESP32-P4. (LE), communicates using the SDIO interface protocol, providing stable connection and efficient transmission.

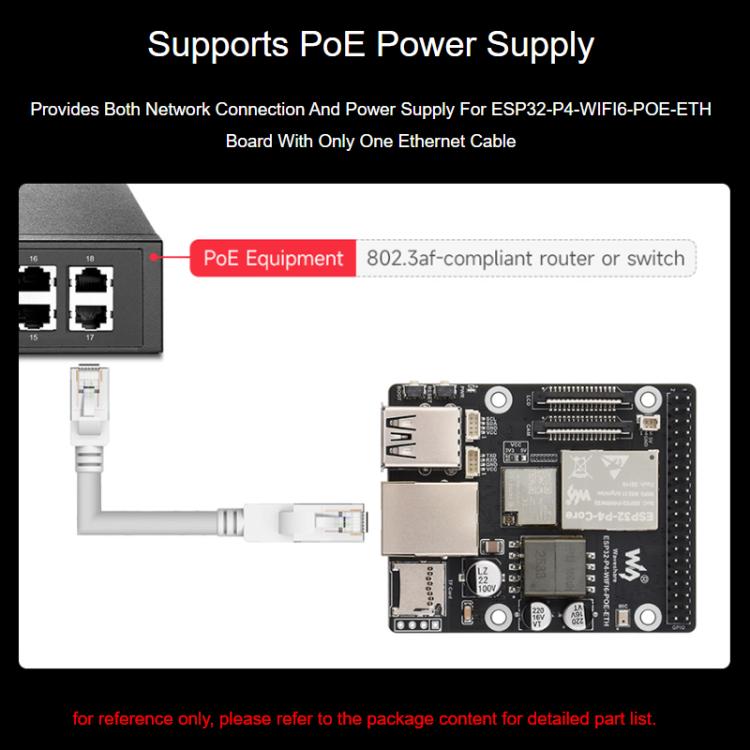

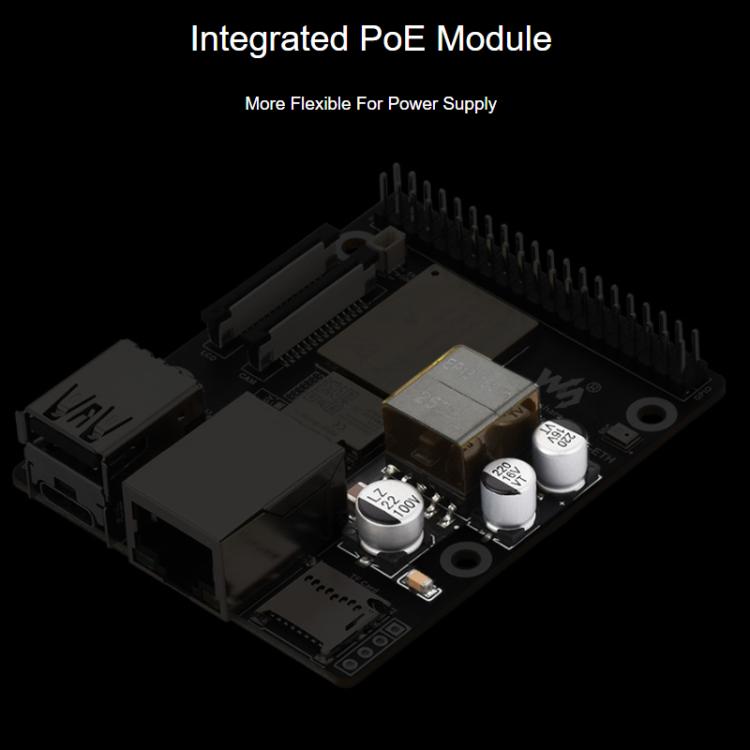

11. Integrated PoE module makes the development boards power supply more flexible.
12. Only one network cable connected to a PoE device is needed for the ESP32-P4-WIFI6-POE-ETH to achieve networking and power supply.

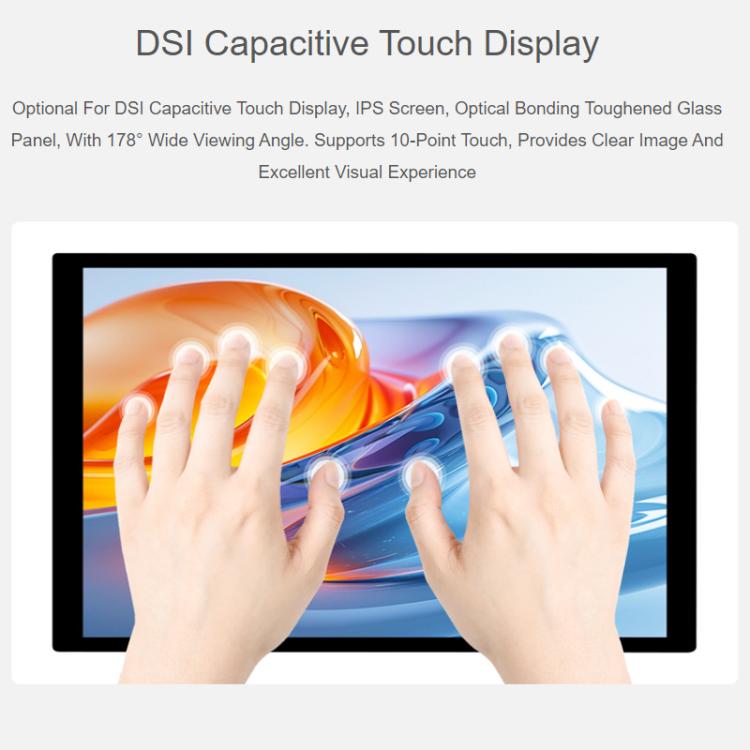

13. Uses an IPS full-laminated tempered glass panel with a 178-degree wide viewing angle, supports ten-point touch, and provides a clear picture and excellent visual experience.
14. Dimensions: 55x68mm

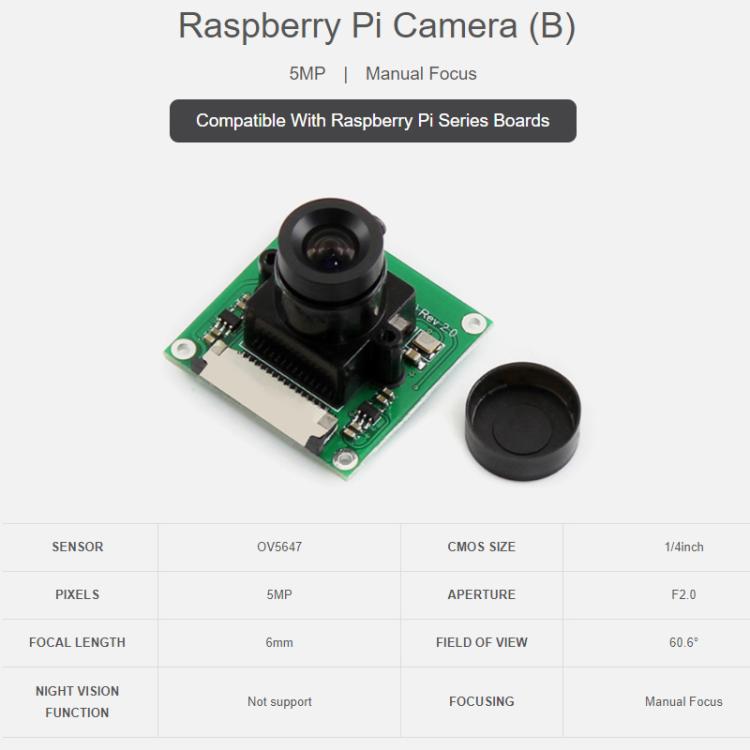

Raspberry Pi camera type B:
1. Image sensor: OV5647
2. CMOS size: 1/4 inch
3. Pixels: 5 million
4. Aperture: F2.0
5. Focal length: 6mm
6. Diagonal field of view: 60.6 degrees
7. Infrared night vision: not supported
8. Focusing method: manual focus

1. Screen model: 10.1-DSI-TOUCH-A
2. Resolution: 800 x 1280 (H x V)
3. Communication interface: MIPI-DSI (2-lane)
4. Brightness: 400cd/m2
5. Touch chip: GT9271
6. Dimensions: 147.0 × 239.0 (mm)
7. Display size: 135.36 × 216.58 (mm)
8. Pixel size: 0.1692 (H) × 0.1692 (V) (mm)
9. Contrast ratio: 800:1

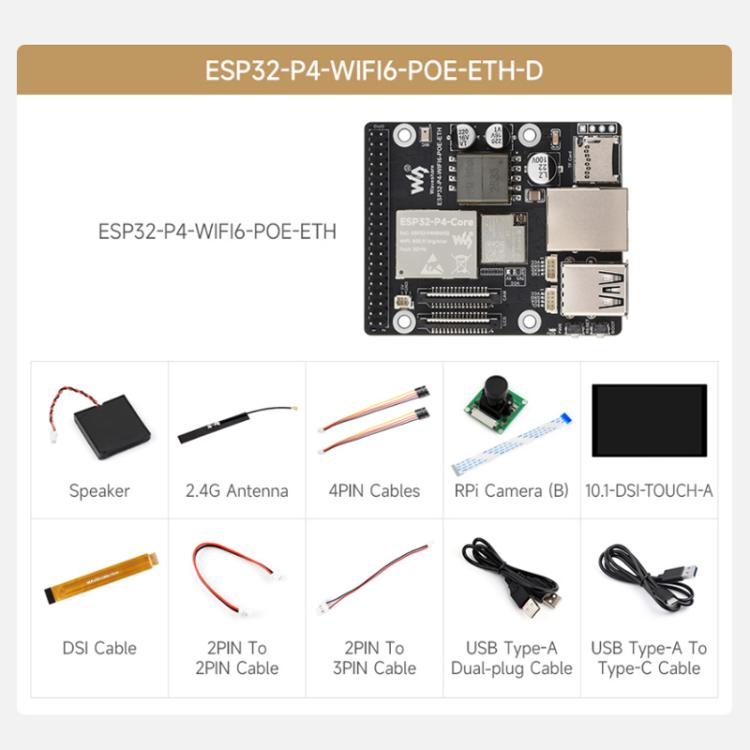

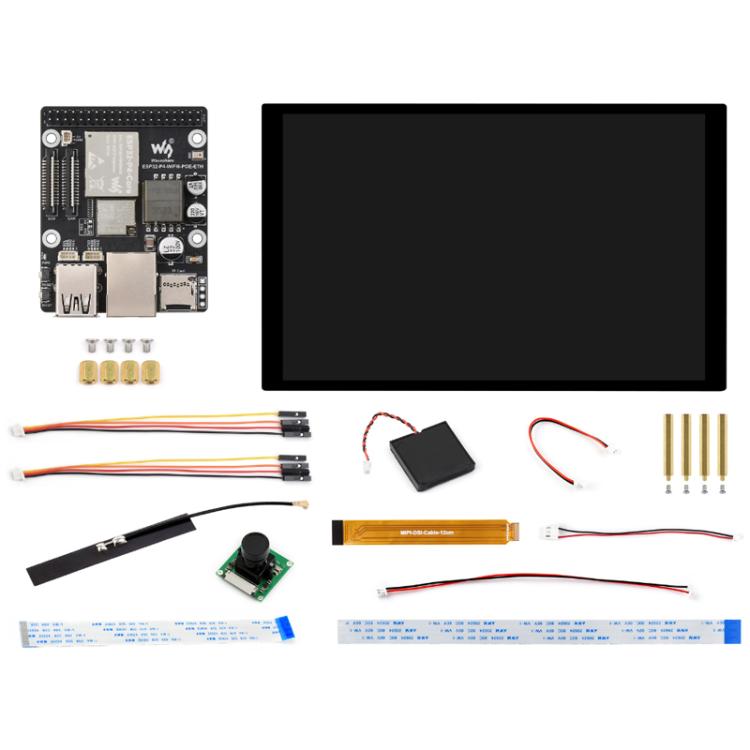

Package contents:
- ESP32-P4-WIFI6-POE-ETH x 1
- 10.1-inch display x 1
- SH1.0 4PIN connecting cable (approx. 150mm) x 2
- 1217 cavity speaker 8Ω 2W x 1
- 2.4G antenna x 1
- RPi camera (B) x 1
- FFC cable - 15-pin ribbon cable x 1
- MIPI-DSI cable 12cm x 1
- MX 1.25 2-pin to 2.54 3-pin connector cable x 1
- FFC cable 22-pin 200mm (reverse direction) x 2
- MX1.25 2-pin to MX1.25 4-pin cable approximately 150mm x 1
- MX1.25 2-pin to SH1.0 2-pin connector cable approximately 80mm x 1
- USB Type-A dual male cable x 1
- USB Type-A to Type-C cable approximately 1 meter x 1
- Copper standoffs pack x 1
- Screw pack x 1


Specification:
Package Weight
One Package Weight 0.50kgs / 1.11lb
One Package Size 23cm * 16cm * 7cm / 9.06inch * 6.3inch * 2.76inch
Qty per Carton 16
Carton Weight 9.10kgs / 20.06lb
Carton Size 48cm * 34cm * 30cm / 18.9inch * 13.39inch * 11.81inch
Loading Container 20GP: 544 cartons * 16 pcs = 8704 pcs
40HQ: 1264 cartons * 16 pcs = 20224 pcs
