Waveshare ESP32-S3R8 1.46inch Round Touch Display Development Board, 412×412, Supports WiFi & Bluetooth Without Cover Glass


1. This product is a microcontroller development board supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. Integrated with high-capacity Flash and PSRAM, it features an onboard 1.46-inch touch LCD screen for smooth operation of GUI interfaces like LVGL. Combined with multiple peripheral interfaces, it accelerates ESP32-S3 HMI application development.

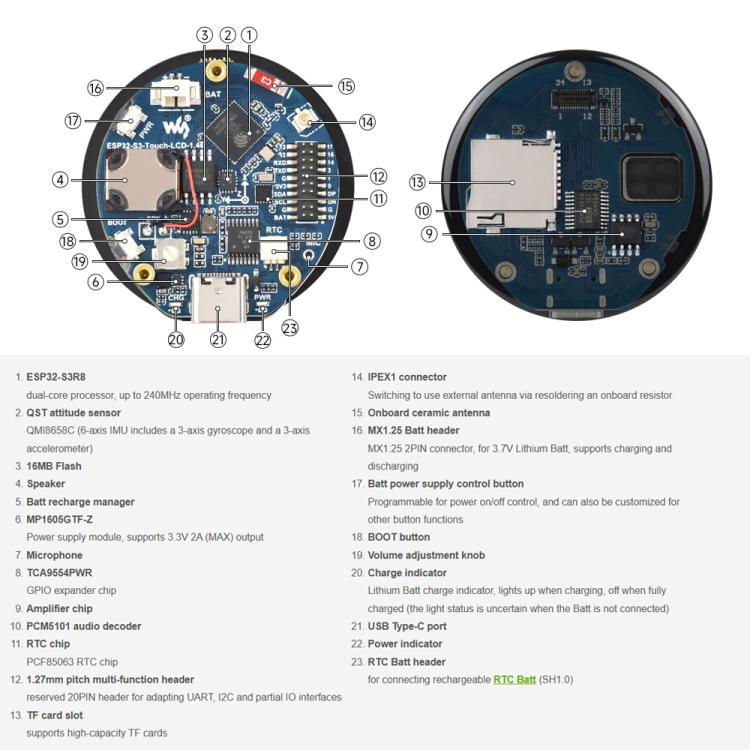

2. Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, operating at up to 240MHz
3. Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna
4. Built-in 512 KB SRAM and 384 KB ROM, stacked with 8 MB PSRAM and 16 MB onboard Flash
5. Type-C interface enhances user convenience and device compatibility

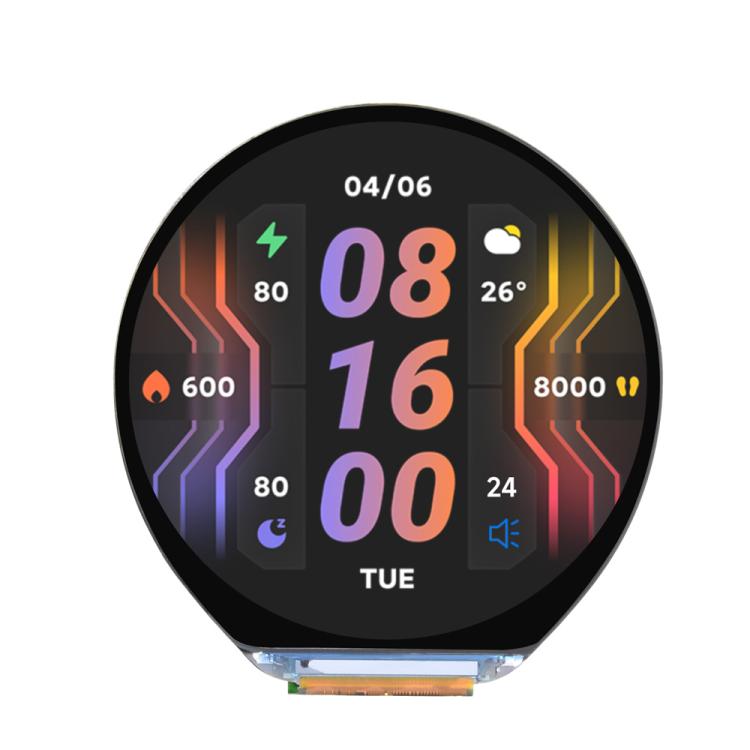

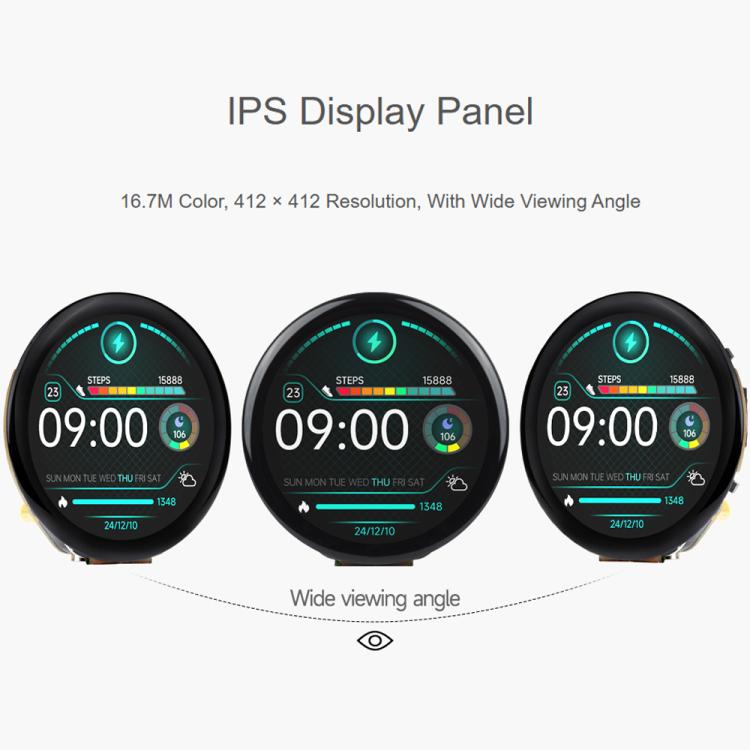

6. Onboard 1.46-inch LCD screen with 412 × 412 resolution and 16.7M colors

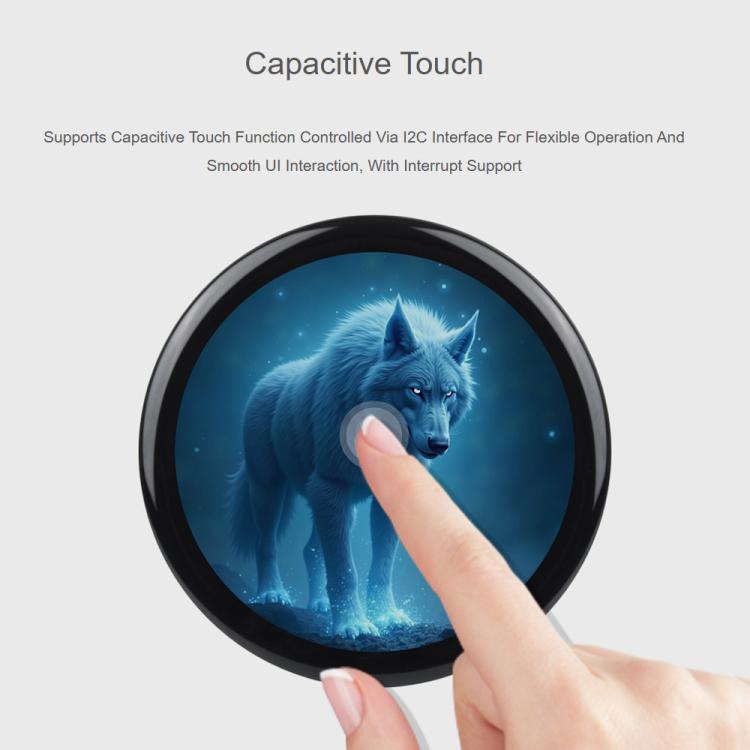

7. Supports I2C interface for touch control with interrupt capability

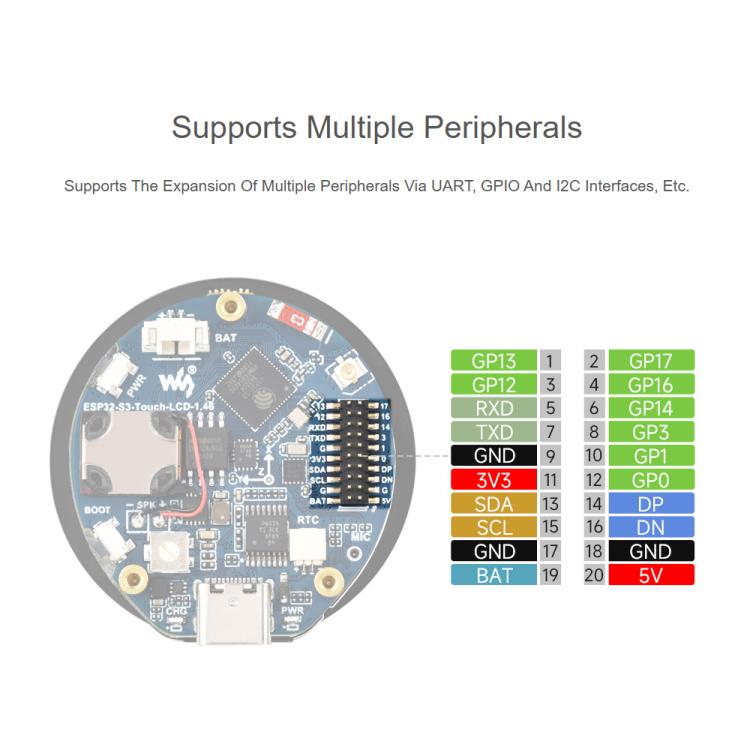

8. Exposed UART, I2C, and partial IO interfaces
9. Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for angle/acceleration detection
10. Onboard PCF85063 RTC chip enables uninterrupted power via external battery, maintaining RTC functionality during main battery replacement
11. Two customizable side buttons (PWR and BOOT) for user-defined functions
12. Onboard 3.7V MX1.25 lithium battery charge/discharge interface
13. Micro SD card slot for storage expansion and high-speed data transfer, facilitating data logging/media playback while streamlining circuit design
14. Flexible clock control and multi-power modes enable precise low-power operation across scenarios
15. Multiple exposed GPIO pins remappable to various functions for custom development
Specification:
Package Weight
One Package Weight 0.38kgs / 0.85lb
One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
Qty per Carton 128
Carton Weight 49.70kgs / 109.57lb
Carton Size 42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch
Loading Container 20GP: 549 cartons * 128 pcs = 70272 pcs
40HQ: 1275 cartons * 128 pcs = 163200 pcs

Waveshare ESP32-S3R8 1.46inch Round Touch Display Development Board, 412×412, Supports WiFi & Bluetooth Without Cover Glass

Product form

SKU: TBD0603134001

  • In stock (Processing Time 1 - 72 hours)

€43,35

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. This product is a microcontroller development board supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. Integrated with high-capacity Flash and PSRAM, it features an onboard 1.46-inch touch LCD screen for smooth operation of GUI interfaces like LVGL. Combined with multiple peripheral interfaces, it accelerates ESP32-S3 HMI application development.
    2. Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, operating at up to 240MHz
    3. Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna
    4. Built-in 512 KB SRAM and 384 KB ROM, stacked with 8 MB PSRAM and 16 MB onboard Flash
    5. Type-C interface enhances user convenience and device compatibility
    6. Onboard 1.46-inch LCD screen with 412 × 412 resolution and 16.7M colors
    7. Supports I2C interface for touch control with interrupt capability
    8. Exposed UART, I2C, and partial IO interfaces
    9. Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for angle/acceleration detection
    10. Onboard PCF85063 RTC chip enables uninterrupted power via external battery, maintaining RTC functionality during main battery replacement
    11. Two customizable side buttons (PWR and BOOT) for user-defined functions
    12. Onboard 3.7V MX1.25 lithium battery charge/discharge interface
    13. Micro SD card slot for storage expansion and high-speed data transfer, facilitating data logging/media playback while streamlining circuit design
    14. Flexible clock control and multi-power modes enable precise low-power operation across scenarios
    15. Multiple exposed GPIO pins remappable to various functions for custom development
    Specification:
    Package Weight
    One Package Weight 0.38kgs / 0.85lb
    One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
    Qty per Carton 128
    Carton Weight 49.70kgs / 109.57lb
    Carton Size 42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch
    Loading Container 20GP: 549 cartons * 128 pcs = 70272 pcs
    40HQ: 1275 cartons * 128 pcs = 163200 pcs
