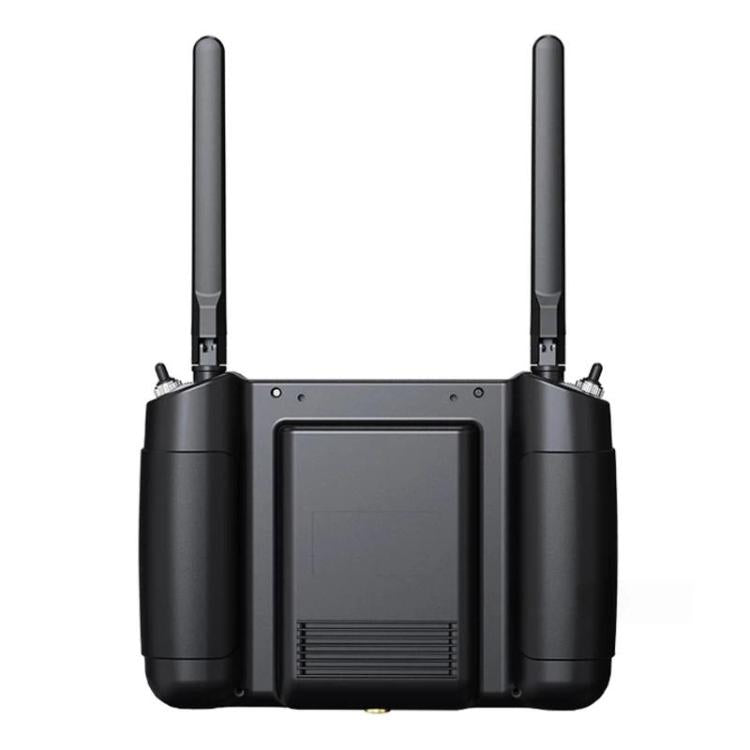

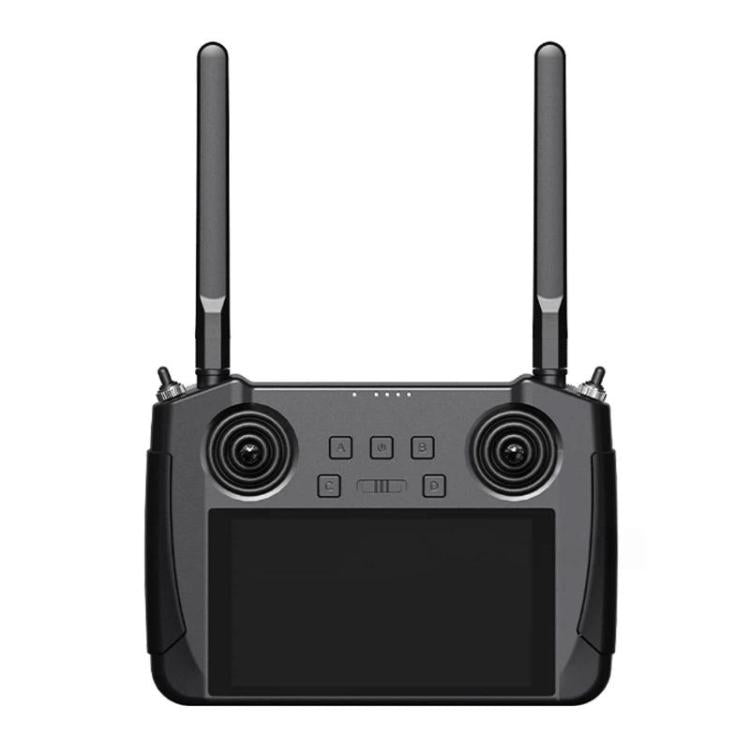

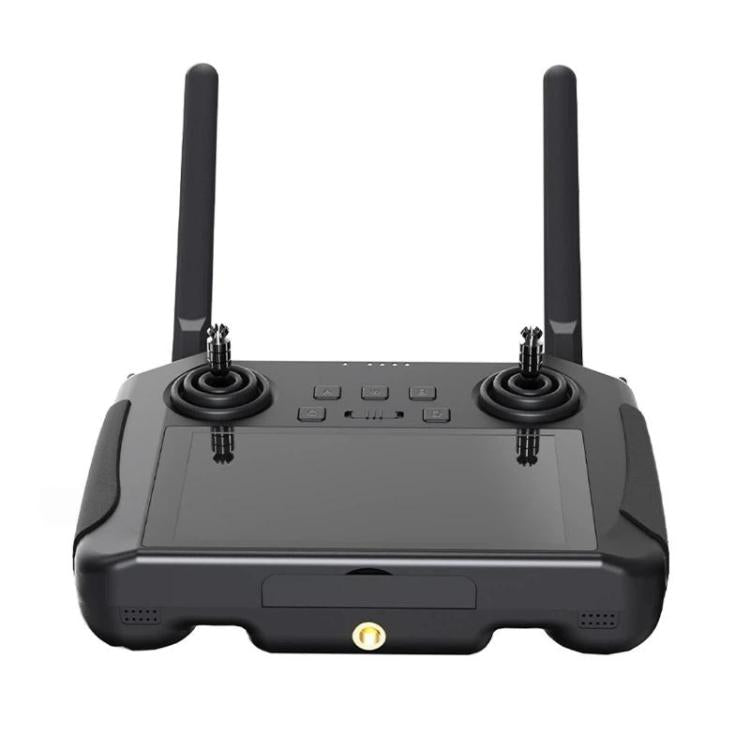

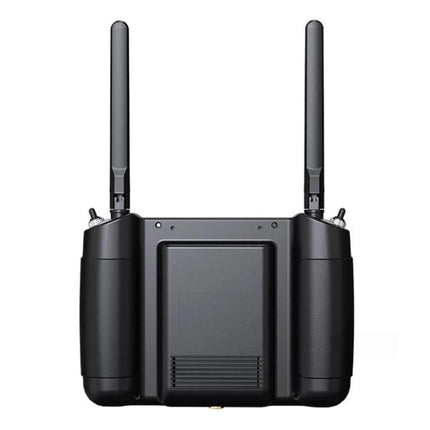

WAVESHARE EyeLink-RC-S1 Octa-Core CPU Onboard 5.5-Inch Handheld Ground Station(Black)


1. Communication distance (without interference or obstruction): 15KM MAX
2. Channels: 13 physical channels; 16 communication channels
3. Data transmission support for flight Controllers: Open-source flight controllers such as PIX, APM, etc.; Boying Paladin v2; Jiyi K3A Pro / K++; Weike Zhifei V7AG
4. Video transmission support for ground stations: QGroundControl; MissionPlanner; Jiyi IFLY / Flight Control Manager; Boying Agriculture; Weike Zhifei V7Pro Ground Station

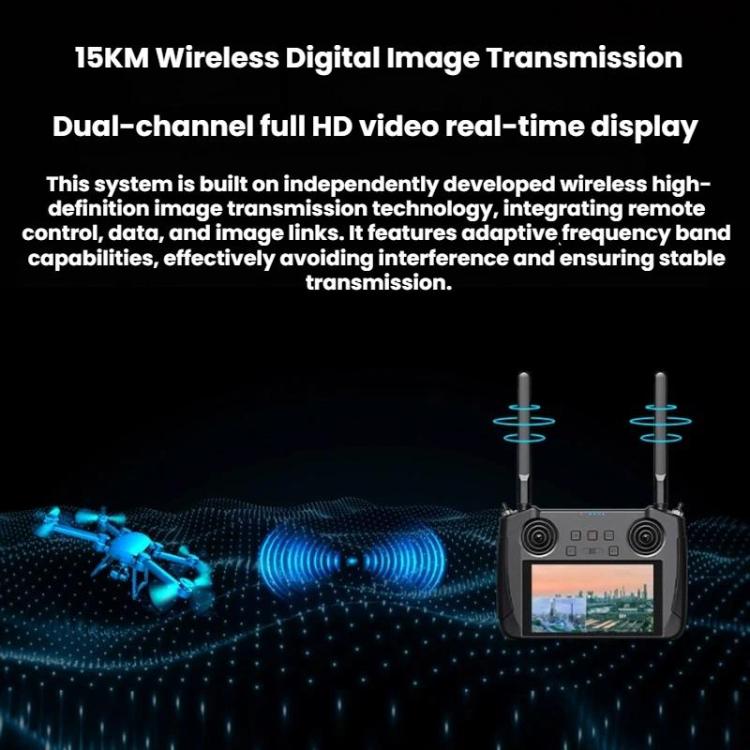

5. 15KM wireless digital video transmission, dual-channel full HD video real-time display

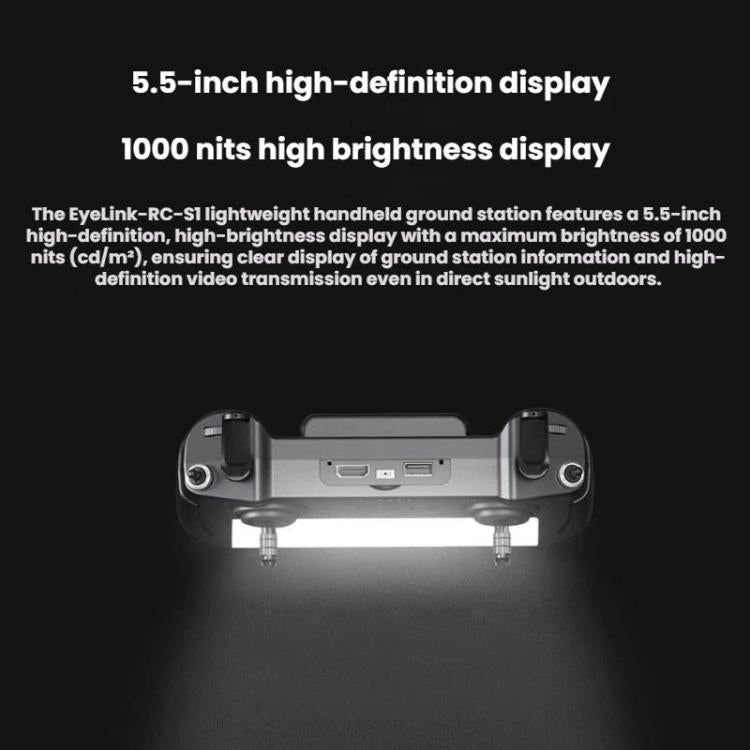

6. Lightweight handheld ground station equipped with a 5.5-inch high-definition high-brightness display, with a brightness of up to 1000 nits, still clearly displaying ground station information and high-definition video transmission images even in direct sunlight outdoors.

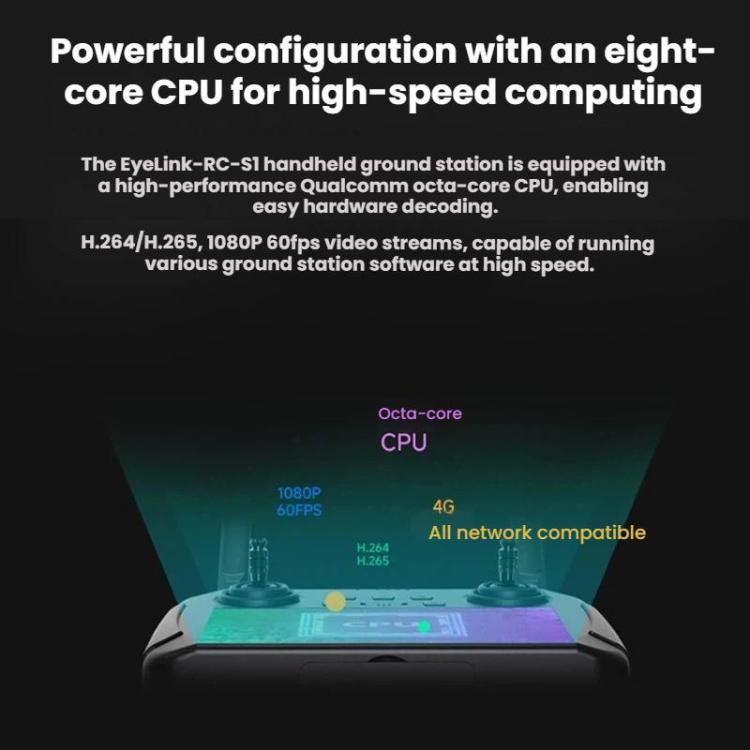

7. Equipped with a qualcomm octa-core high-performance CPU, easily hard-decoding H.264/H.265, 1080P 60fps video streams, and capable of running various ground station software at high speed.

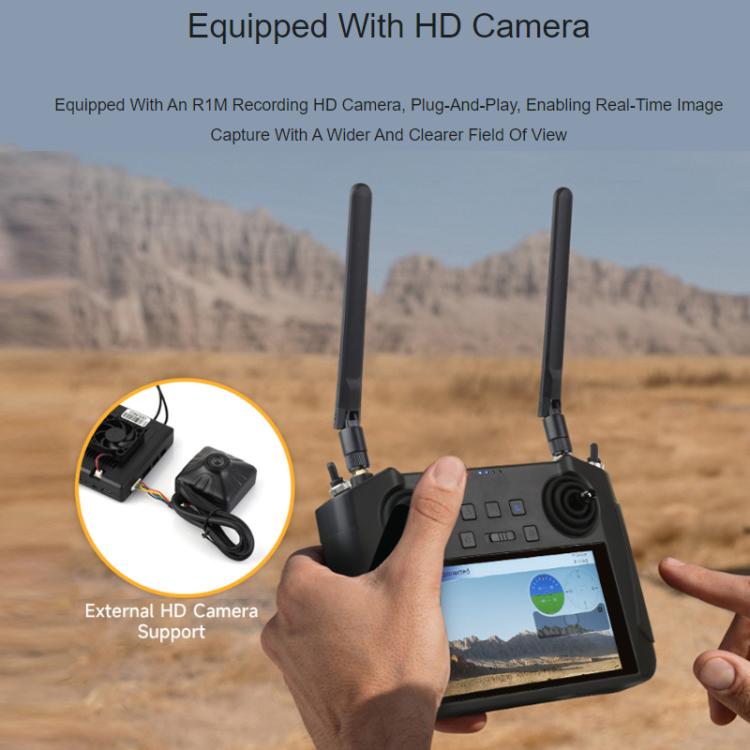

8. Equipped with an R1M card recording high-definition camera interface, plug-and-play, real-time image reading, providing a wider and clearer field of view.

Ground station
1. Display device: 5.5-inch 1080P High-definition High-brightness LCD Touch Display
2. System configuration: Android 9.0, 2G RAM, 16G Storage
3. Dimensions: (Antenna folded) 189.09 x 137.95 x 69.72 (mm)
4. Weight: 850g
5. Battery capacity and type: 10200mAh, 7.4V 2S Lithium-ion battery
6. Fast charging protocol: PD 20W
7. Charging time: 5h (20W fast charging)
8. Operating time: 13h

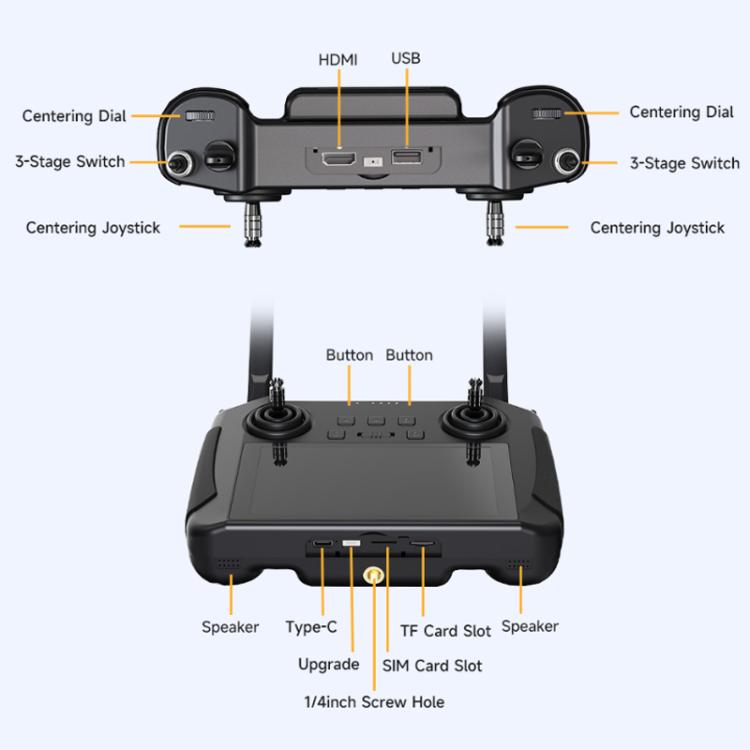

9. Functional interfaces:
- Charging: Type-C
- Firmware upgrade: DATA (4PIN)
- - Mobile network: SIM card slot
- External storage: TF card slot
- Tripod mount: 1/4 inch threaded hole
- Video output: Standard HDMI
- External RTK: DATA (4PIN)
- External USB drive: USB-A
10. Waterproof rating: IP53

Package contents:
- EyeLink-RC-S1 x 1
- MK15 sky unit and omnidirectional antenna x 1
- Range extender antenna x 1
- USB upgrade data cable x 1
- PWM and PIX flight controller data transmission cable x 1
- R1M card recording HD camera x 1
- PD Fast charging data cable with dual type-C ports x 1
- Sky unit 8PIN connection cable x 1
- 20W PD US standard fast charger x 1
- Packaging box x 1


Specification:
Package Weight
One Package Weight 0.95kgs / 2.10lb
One Package Size 22cm * 17cm * 10cm / 8.66inch * 6.69inch * 3.94inch
Qty per Carton 12
Carton Weight 12.50kgs / 27.56lb
Carton Size 46cm * 36cm * 32cm / 18.11inch * 14.17inch * 12.6inch
Loading Container 20GP: 503 cartons * 12 pcs = 6036 pcs
40HQ: 1168 cartons * 12 pcs = 14016 pcs

WAVESHARE EyeLink-RC-S1 Octa-Core CPU Onboard 5.5-Inch Handheld Ground Station(Black)

Product form

SKU: TBD0537003101A

  • In stock (Processing Time 1 - 72 hours)

€985,08

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Communication distance (without interference or obstruction): 15KM MAX
    2. Channels: 13 physical channels; 16 communication channels
    3. Data transmission support for flight Controllers: Open-source flight controllers such as PIX, APM, etc.; Boying Paladin v2; Jiyi K3A Pro / K++; Weike Zhifei V7AG
    4. Video transmission support for ground stations: QGroundControl; MissionPlanner; Jiyi IFLY / Flight Control Manager; Boying Agriculture; Weike Zhifei V7Pro Ground Station
    5. 15KM wireless digital video transmission, dual-channel full HD video real-time display
    6. Lightweight handheld ground station equipped with a 5.5-inch high-definition high-brightness display, with a brightness of up to 1000 nits, still clearly displaying ground station information and high-definition video transmission images even in direct sunlight outdoors.
    7. Equipped with a qualcomm octa-core high-performance CPU, easily hard-decoding H.264/H.265, 1080P 60fps video streams, and capable of running various ground station software at high speed.
    8. Equipped with an R1M card recording high-definition camera interface, plug-and-play, real-time image reading, providing a wider and clearer field of view.

    Ground station
    1. Display device: 5.5-inch 1080P High-definition High-brightness LCD Touch Display
    2. System configuration: Android 9.0, 2G RAM, 16G Storage
    3. Dimensions: (Antenna folded) 189.09 x 137.95 x 69.72 (mm)
    4. Weight: 850g
    5. Battery capacity and type: 10200mAh, 7.4V 2S Lithium-ion battery
    6. Fast charging protocol: PD 20W
    7. Charging time: 5h (20W fast charging)
    8. Operating time: 13h
    9. Functional interfaces:
    - Charging: Type-C
    - Firmware upgrade: DATA (4PIN)
    - - Mobile network: SIM card slot
    - External storage: TF card slot
    - Tripod mount: 1/4 inch threaded hole
    - Video output: Standard HDMI
    - External RTK: DATA (4PIN)
    - External USB drive: USB-A
    10. Waterproof rating: IP53

    Package contents:
    - EyeLink-RC-S1 x 1
    - MK15 sky unit and omnidirectional antenna x 1
    - Range extender antenna x 1
    - USB upgrade data cable x 1
    - PWM and PIX flight controller data transmission cable x 1
    - R1M card recording HD camera x 1
    - PD Fast charging data cable with dual type-C ports x 1
    - Sky unit 8PIN connection cable x 1
    - 20W PD US standard fast charger x 1
    - Packaging box x 1


    Specification:
    Package Weight
    One Package Weight 0.95kgs / 2.10lb
    One Package Size 22cm * 17cm * 10cm / 8.66inch * 6.69inch * 3.94inch
    Qty per Carton 12
    Carton Weight 12.50kgs / 27.56lb
    Carton Size 46cm * 36cm * 32cm / 18.11inch * 14.17inch * 12.6inch
    Loading Container 20GP: 503 cartons * 12 pcs = 6036 pcs
    40HQ: 1168 cartons * 12 pcs = 14016 pcs
