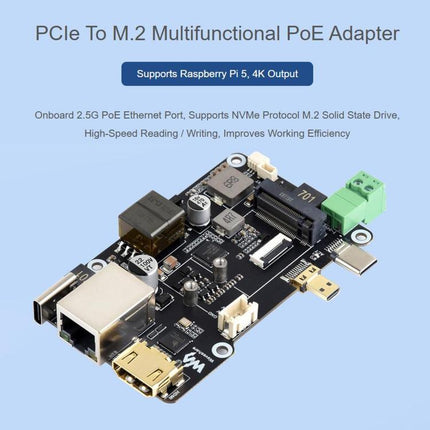

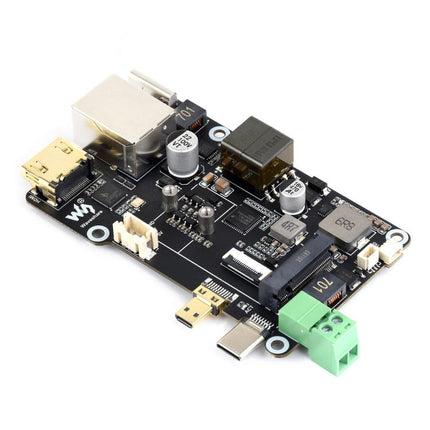

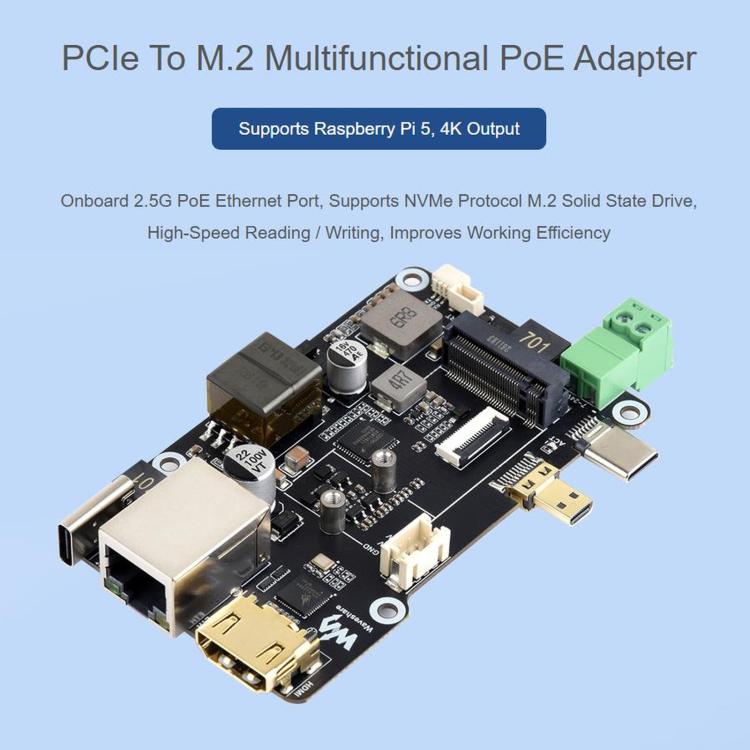

WAVESHARE PCIe To M.2 Multifunctional Adapter, 4K Output, Original RTL8125 2.5GbE Ethernet Controller, Supports For Raspberry Pi OS

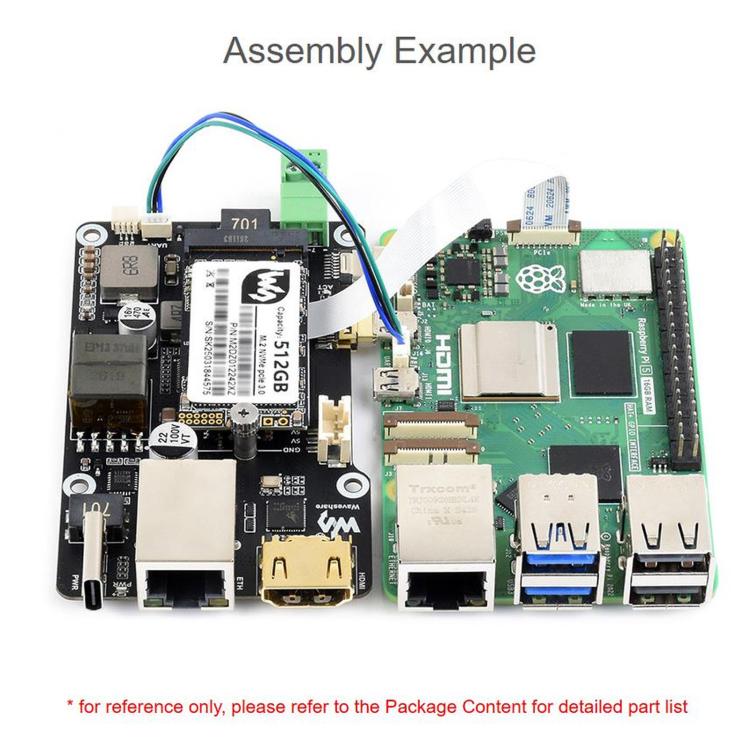

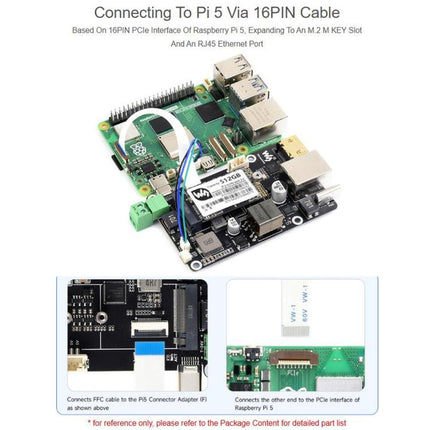

1. Connects for Raspberry Pi 5’s PCIe port via a 16-pin cable to provide an M.2 M-Key slot and an RJ45 Ethernet port, supporting booting the Raspberry Pi 5 from an NVMe solid-state drive

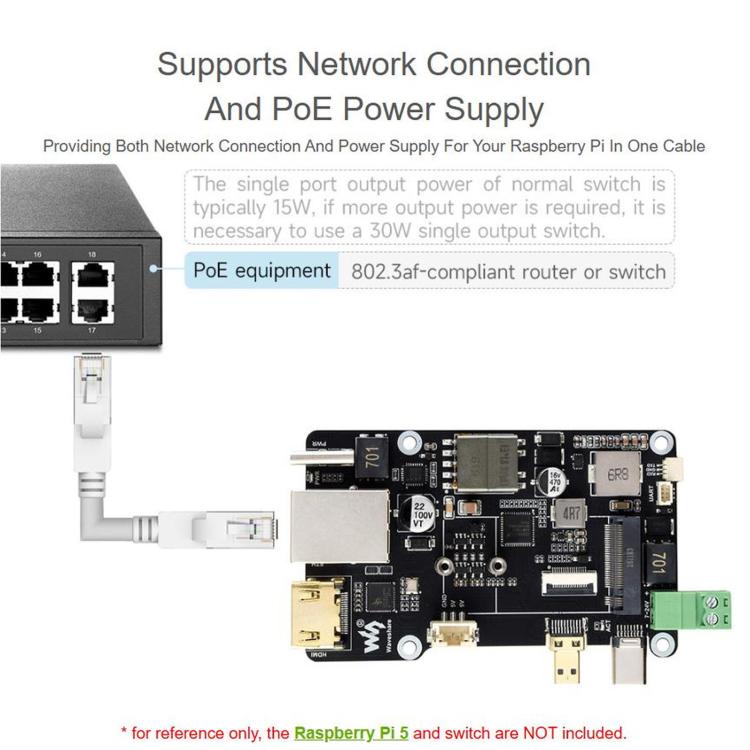

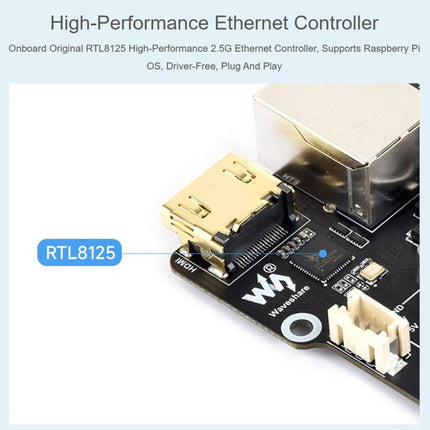

2. Equipped with an RTL8125 network controller chip, it supports 2.5G high-speed network transmission and driver-free direct connection Raspberry Pi OS; it also supports IEEE 802.3af-compliant PoE (Power over Ethernet), enabling simultaneous data and power transmission over the Ethernet cable.

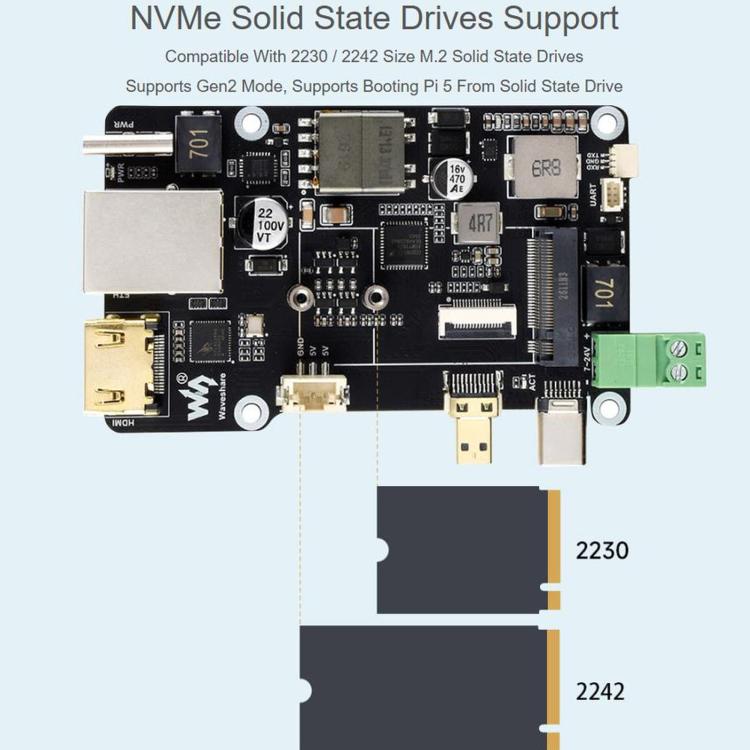

3. The expansion slot is compatible with both 2230 and 2242 form factor M.2 NVMe solid-state drives and supports Gen2 transfer mode

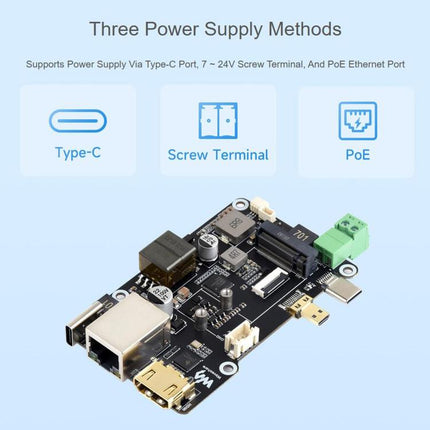

4. Offers three power supply options: a Type-C port, 7–24V screw-type terminal blocks, and a PoE Ethernet cable, meeting power requirements for various scenarios

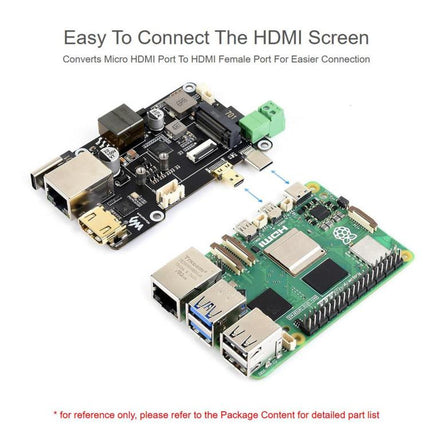

5. Integrates a Micro HDMI to standard HDMI female port function, supporting 4K video output, simplifying the connection process between the device and a display
8. Dimensions: Approximately 86 x 52.5 x 49.5 mm

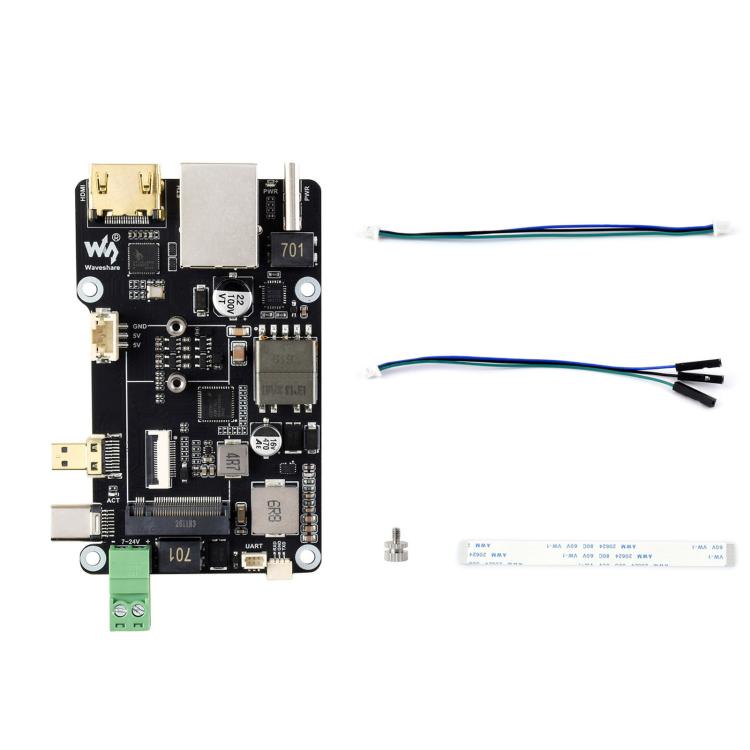

Package Contents:
1. Adapter board x 1
2. 3-pin connector cable x 1
3. 3-pin connector cable (reverse orientation) x 1
4. Screw stud x 1
5. 16-pin FFC cable x 1
Specification:
Package Weight
One Package Weight 0.10kgs / 0.23lb
One Package Size 13cm * 9cm * 4cm / 5.12inch * 3.54inch * 1.57inch
Qty per Carton 100
Carton Weight 11.00kgs / 24.25lb
Carton Size 44cm * 36cm * 20cm / 17.32inch * 14.17inch * 7.87inch
Loading Container 20GP: 841 cartons * 100 pcs = 84100 pcs
40HQ: 1954 cartons * 100 pcs = 195400 pcs
