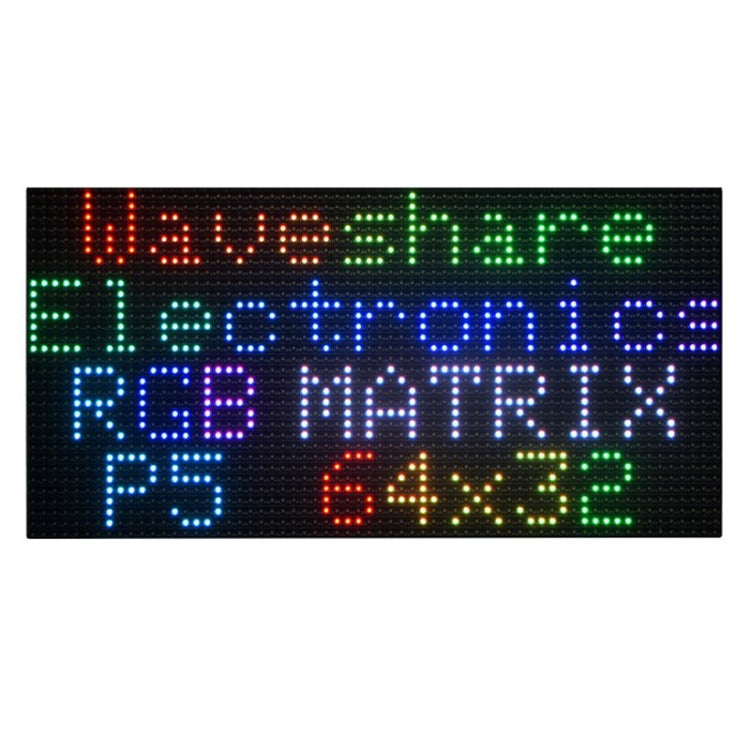

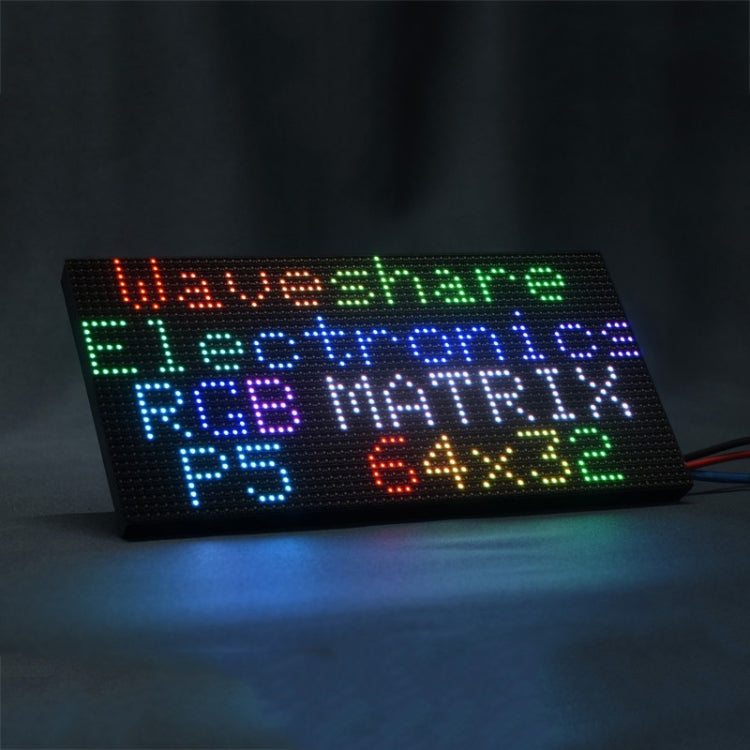

Waveshare RGB Full-color LED Matrix Panel, 5mm Pitch, 64x32 Pixels, Adjustable Brightness(25848)


Features:
1. Using high-brightness 2048 RGB LED beads, full-color display, adjustable brightness
2. Can display text, color pictures or animations
3. A version using flexible PCB material is available, which can be bent appropriately and is suitable for some arc-shaped surface displays such as cylinders and spheres.

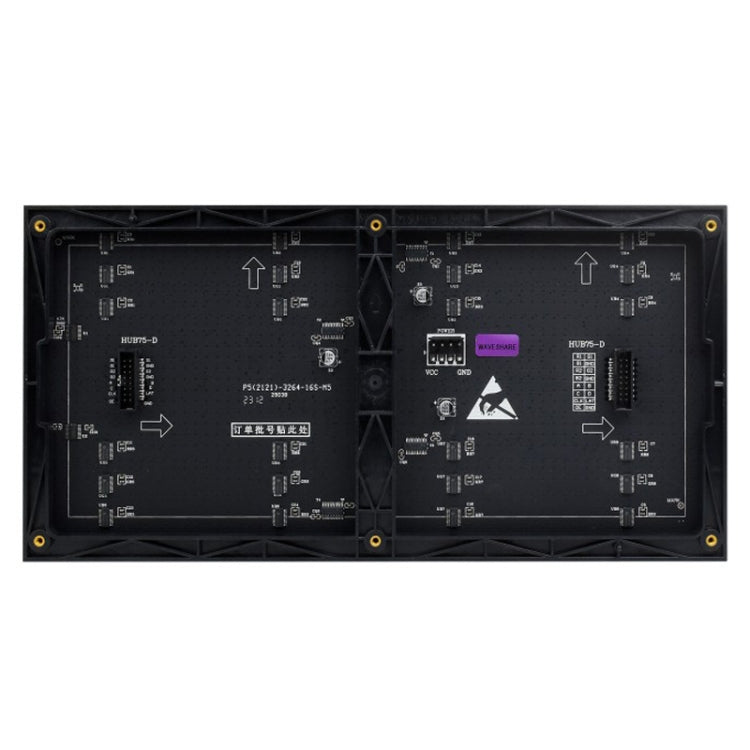

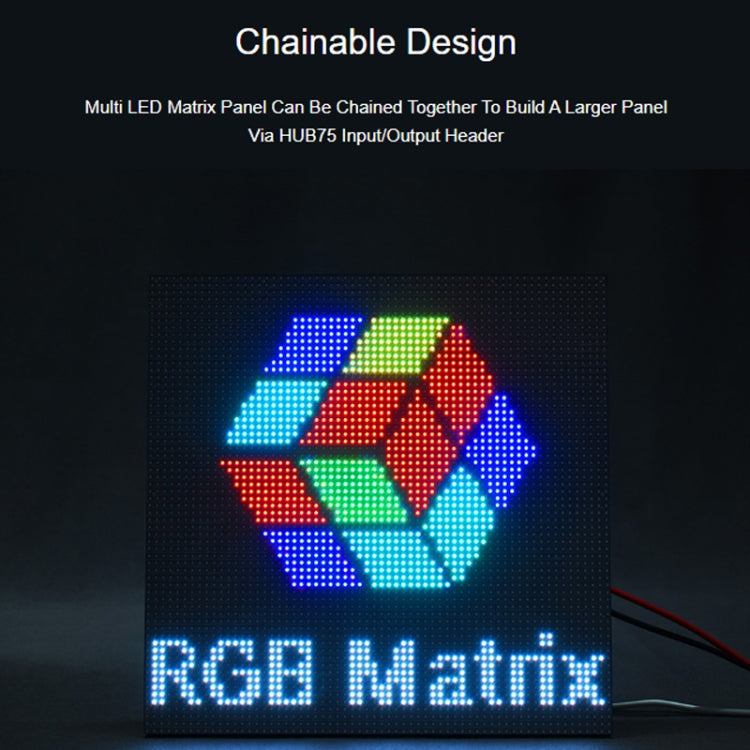

4. There are two HUB75 interfaces onboard, one input is used to connect to the controller; one output can be cascaded to multiple screens.
5. Provide open source information tutorials (Raspberry Pi/Pico/ESP32/Arduino sample programs, etc.)

Product parameters:
1. Pixel: 64x32=2048 DOTS
2. Point pitch: 5mm
3. Pixel format: 1R1G1B
4. Viewing angle: greater than or equal to 140°
5. Control type: synchronization
6. Driving mode: 1/16 scan

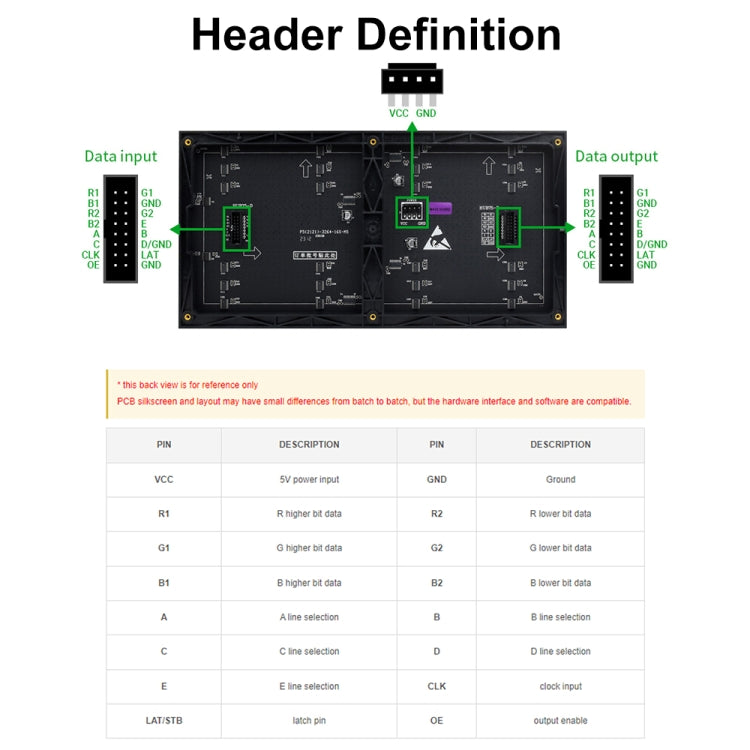

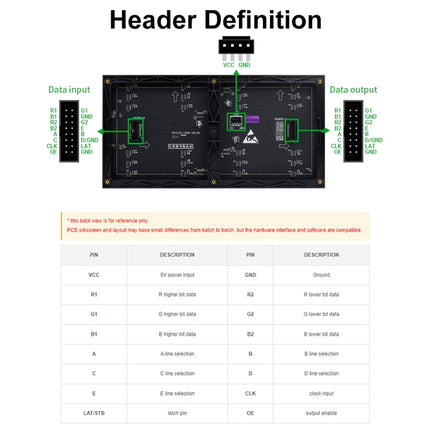

7. Connector: HUB75
8. Power supply: 5V/4A (VH4 head input)
9. Power: 20W

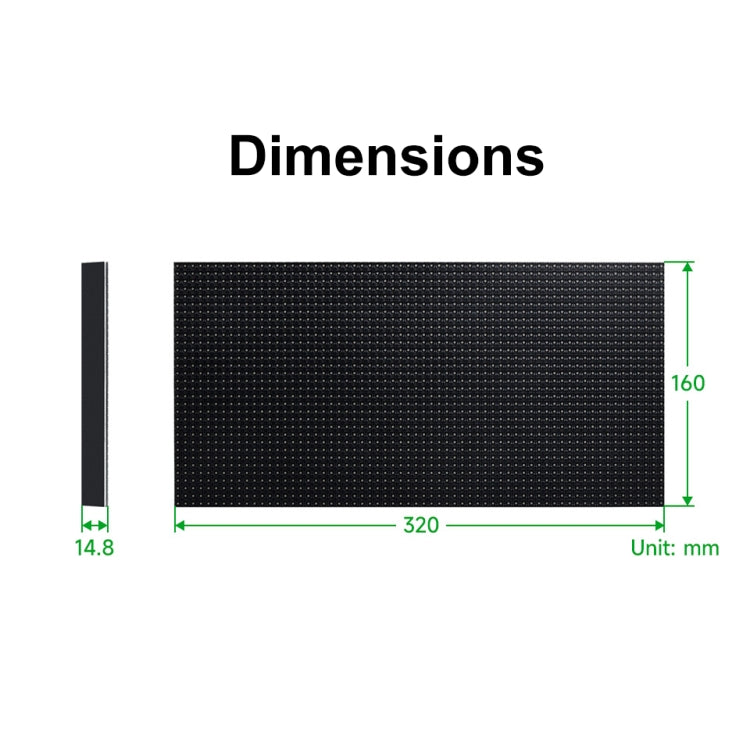

10. Product size: 320 x 160 x 14.8mm
11. Weight: 474 grams

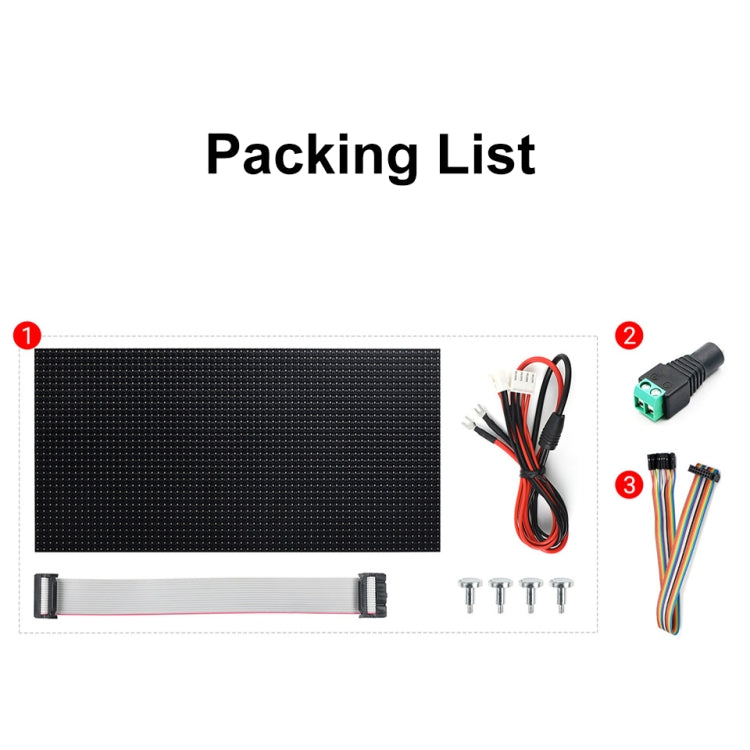

Packing list:
-RGB dot matrix screen x 1
-Power adapter x 1
-Flat wire x 1
-Loose thread x 1
-Screws x 4
-Dupont cord x 1


Specification:
Package Weight
One Package Weight 1.09kgs / 2.41lb
One Package Size 36cm * 20cm * 5cm / 14.17inch * 7.87inch * 1.97inch
Qty per Carton 12
Carton Weight 14.20kgs / 31.31lb
Carton Size 38cm * 42cm * 32cm / 14.96inch * 16.54inch * 12.6inch
Loading Container 20GP: 522 cartons * 12 pcs = 6264 pcs
40HQ: 1212 cartons * 12 pcs = 14544 pcs

Waveshare RGB Full-color LED Matrix Panel, 5mm Pitch, 64x32 Pixels, Adjustable Brightness(25848)

Product form

SKU: TBD0604807501A

  • In stock (Processing Time 1 - 72 hours)

€40,28

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    Features:
    1. Using high-brightness 2048 RGB LED beads, full-color display, adjustable brightness
    2. Can display text, color pictures or animations
    3. A version using flexible PCB material is available, which can be bent appropriately and is suitable for some arc-shaped surface displays such as cylinders and spheres.
    4. There are two HUB75 interfaces onboard, one input is used to connect to the controller; one output can be cascaded to multiple screens.
    5. Provide open source information tutorials (Raspberry Pi/Pico/ESP32/Arduino sample programs, etc.)

    Product parameters:
    1. Pixel: 64x32=2048 DOTS
    2. Point pitch: 5mm
    3. Pixel format: 1R1G1B
    4. Viewing angle: greater than or equal to 140°
    5. Control type: synchronization
    6. Driving mode: 1/16 scan
    7. Connector: HUB75
    8. Power supply: 5V/4A (VH4 head input)
    9. Power: 20W
    10. Product size: 320 x 160 x 14.8mm
    11. Weight: 474 grams

    Packing list:
    -RGB dot matrix screen x 1
    -Power adapter x 1
    -Flat wire x 1
    -Loose thread x 1
    -Screws x 4
    -Dupont cord x 1


    Specification:
    Package Weight
    One Package Weight 1.09kgs / 2.41lb
    One Package Size 36cm * 20cm * 5cm / 14.17inch * 7.87inch * 1.97inch
    Qty per Carton 12
    Carton Weight 14.20kgs / 31.31lb
    Carton Size 38cm * 42cm * 32cm / 14.96inch * 16.54inch * 12.6inch
    Loading Container 20GP: 522 cartons * 12 pcs = 6264 pcs
    40HQ: 1212 cartons * 12 pcs = 14544 pcs
