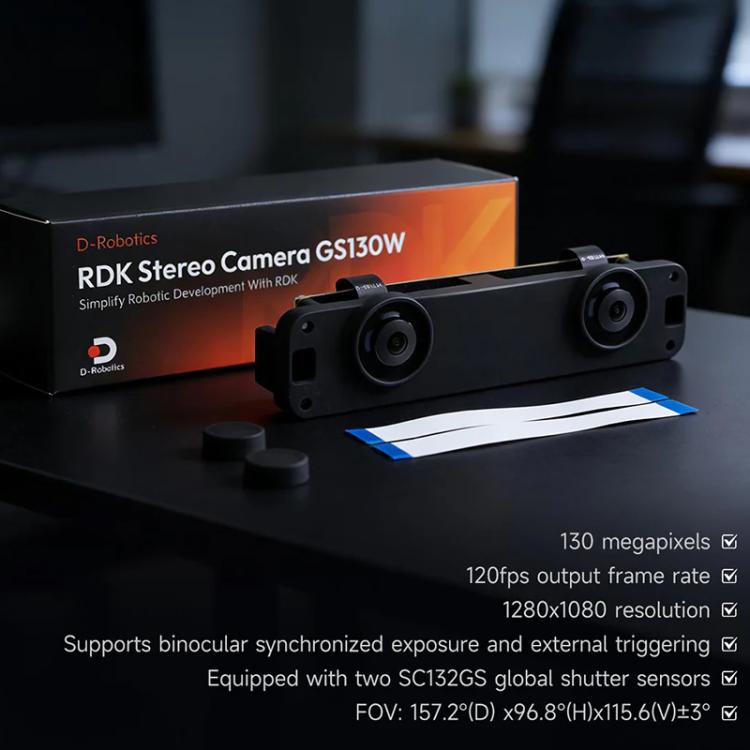

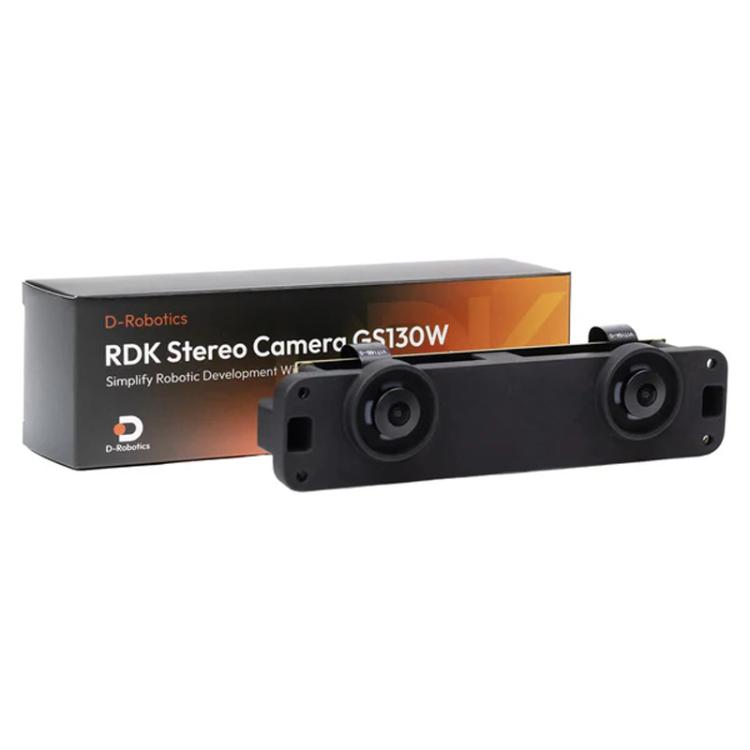

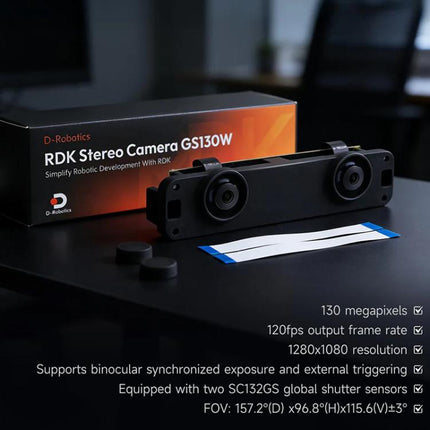

YAHBOOM D-Robotics RDK GS130W Stereo Camera For RDK X5/S100 P Dual 1.3MP Color Sensors


1. D-Robotics RDK GS130W is a high-performance binocular stereo global shutter camera module designed for precise dynamic vision applications. It features dual SC132GS global shutter sensors supporting synchronized binocular exposure and external triggering, delivering up to 120 fps at 1280×1080 resolution. With an 80mm baseline, high dynamic range (HDR), 40dB signal-to-noise ratio, and near-infrared enhancement, the GS130W is ideal for robotic vision, real-time motion tracking, and machine inspection. Fully compatible with RDK X5 and S100(P) development boards, its rugged semi-enclosed metal housing and reliable MIPI connectivity enable easy commercial deployment and scalable vision solutions.
2. Global Shutter for Motion-Stable Imaging: Equipped with dual SC132GS global shutter sensors supporting synchronized exposure and external triggering, it eliminates motion blur to ensure precise image capture in dynamic scenes—perfect for robotics and real-time monitoring.
3. High-Speed & High-Resolution Vision: Provides 1280×1080 resolution video at 120 fps with high dynamic range (HDR) and 40dB signal-to-noise ratio, delivering clear, detailed, low-noise video for accurate depth perception and machine vision tasks.

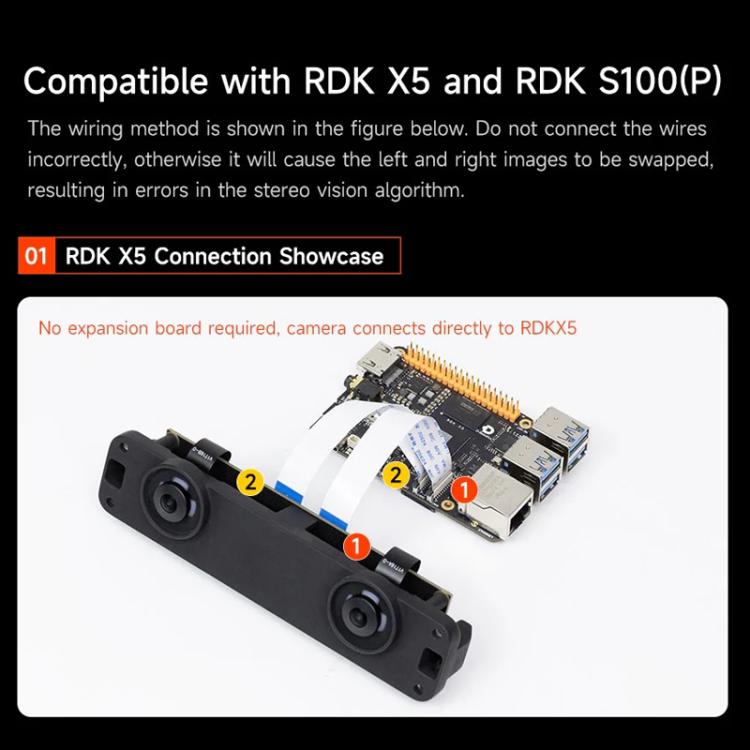

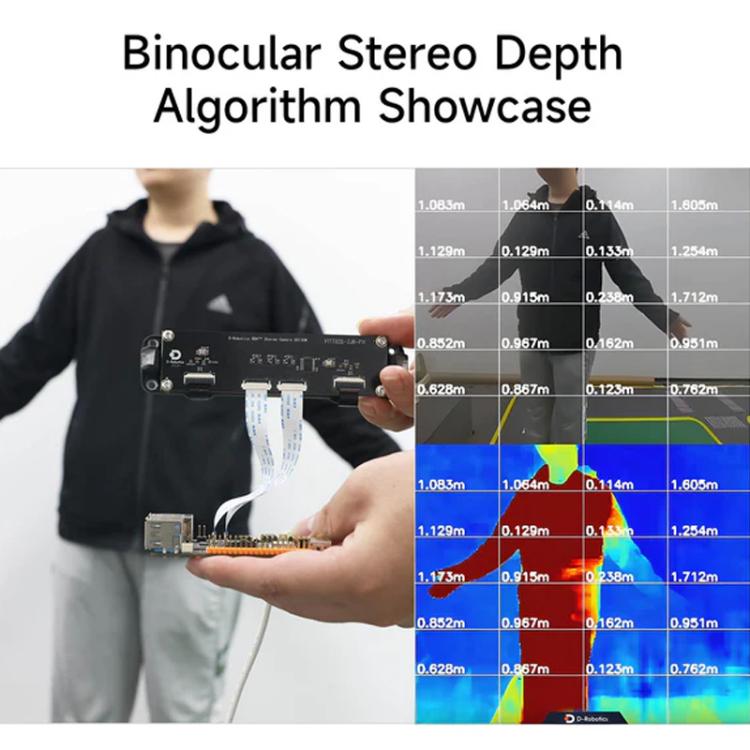

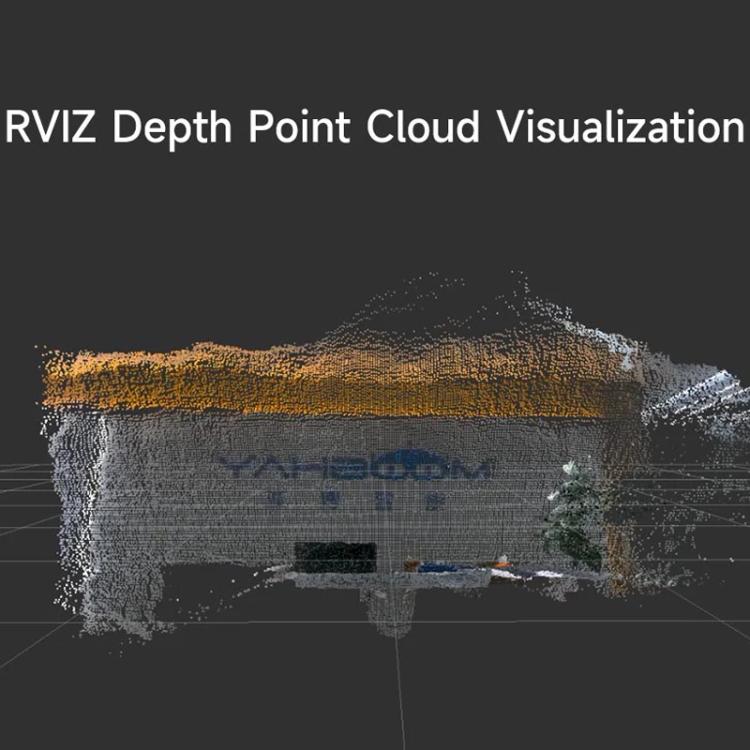

4. Optimized for RDK Ecosystem: Directly compatible with RDK X5 and RDK S100(P) development boards via MIPI interface (requires pairing with the RDK S100(P) camera expansion board). Includes stereo depth algorithm resources and sample code to accelerate integration and development of ROS-based applications.

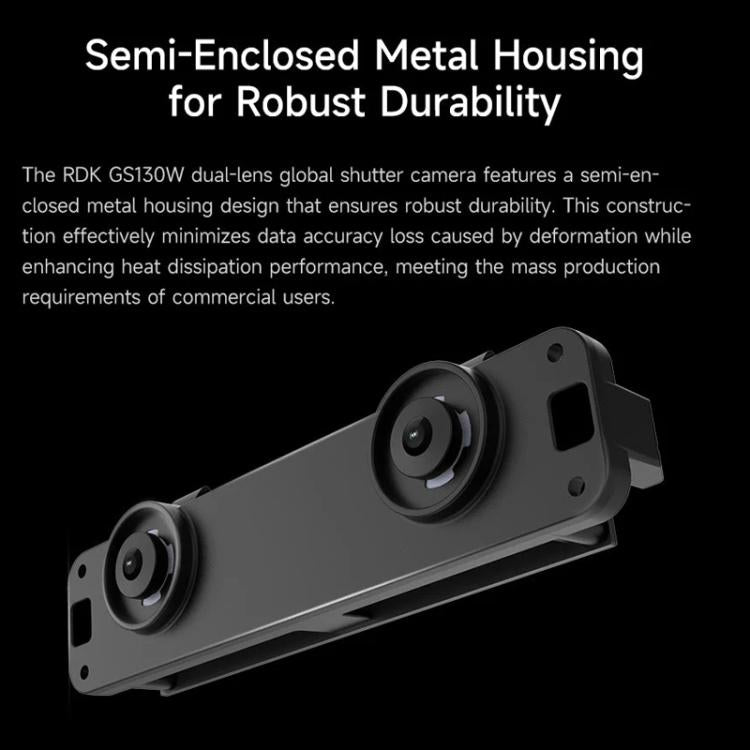

5. Rugged & Reliable Design: The semi-enclosed metal housing enhances durability, improves heat dissipation, and minimizes deformation to ensure stable and reliable performance in commercial and industrial environments.

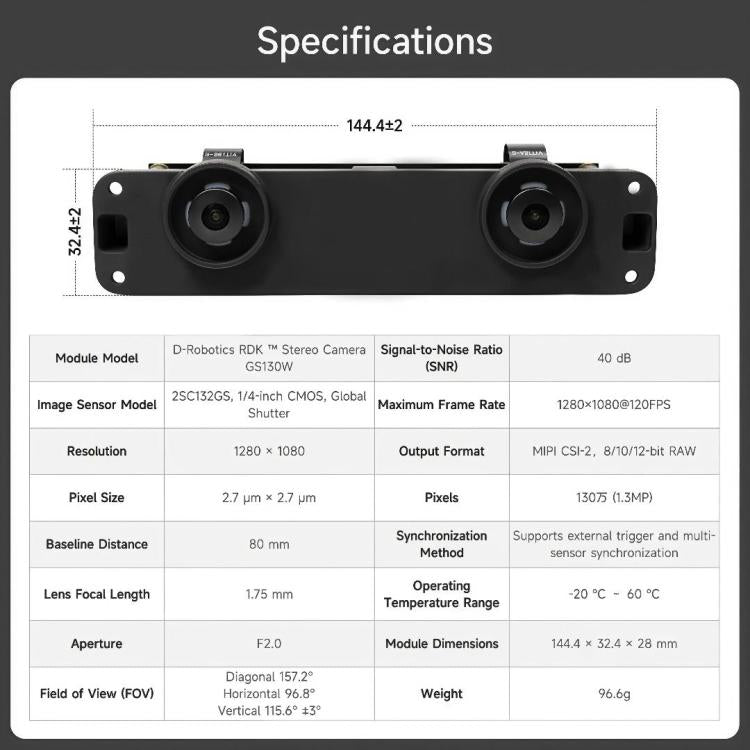

Parameters:
1. Signal-to-Noise Ratio: 40 dB
2. Image Sensor Model: 2 × SC132GS, 1/4-inch CMOS, global shutter
3. Maximum Frame Rate: 1280×1080 at 120 FPS
4. Resolution: 1280 × 1080
5. Output Format: MIPI CSI-2, 8/10/12-bit RAW
6. Pixel Size: 2.7 micrometers × 2.7 micrometers
7. Pixels: 1.3 megapixels
8. Baseline Distance: 80 millimeters
9. Synchronization: Supports external triggering and multi-sensor synchronization
10. Lens Focal Length: 1.75 millimeters
11. Operating Temperature Range: Minus 20 to 60 degrees Celsius
12. Aperture: F2.0
13. Module Dimensions: 144.4 × 32.4 × 28 millimeters
14. Field of View: Diagonal 157.2 degrees, Horizontal 96.8 degrees, Vertical 115.6 plus or minus 3 degrees
15. Weight: 96.6 grams


Specification:
Package Weight
One Package Weight 0.13kgs / 0.30lb
One Package Size 18cm * 6cm * 6cm / 7.09inch * 2.36inch * 2.36inch
Qty per Carton 80
Carton Weight 11.50kgs / 25.35lb
Carton Size 38cm * 32cm * 50cm / 14.96inch * 12.6inch * 19.69inch
Loading Container 20GP: 438 cartons * 80 pcs = 35040 pcs
40HQ: 1018 cartons * 80 pcs = 81440 pcs
