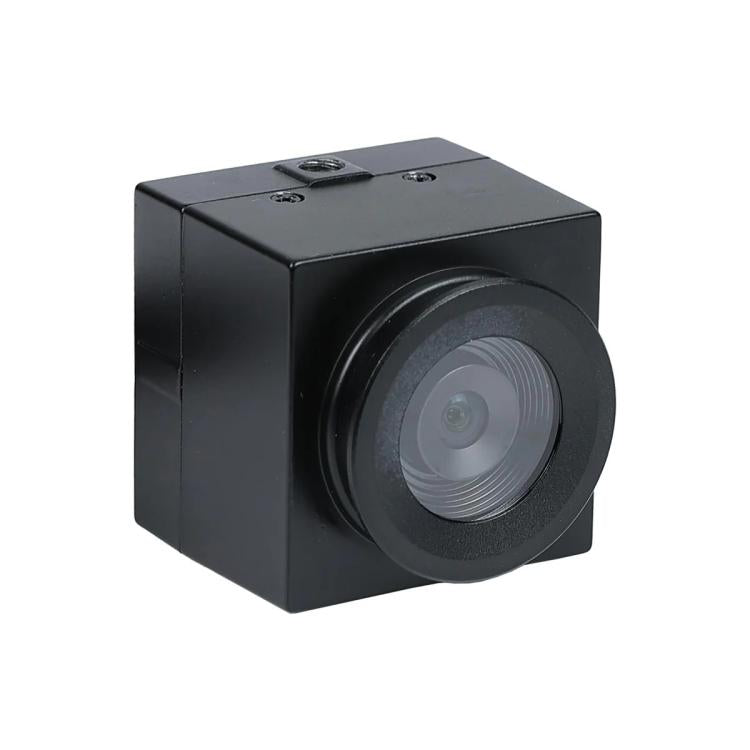

YAHBOOM Industrial USB AI Vision Camera 5MP Distortion-Free Lens, Above 2K Resolution For Raspberry Pi/Jetson/RDK/PC No Tripod


1. Yahboom USB industrial AI vision camera features 5 million pixels, 2592x1944 ultra-high-definition 2K resolution, and a 105-degree wide-angle field of view. It captures distortion-free images at 30fps (MJPG format), making it ideal for real-time AI target detection and autonomous driving. The camera includes a high-speed driver-free USB 2.0 interface, supports standard UVC communication protocol and OTG extension, and comes with an integrated USB cable for plug-and-play operation. It delivers high-resolution imaging for advanced edge AI and robotics applications.

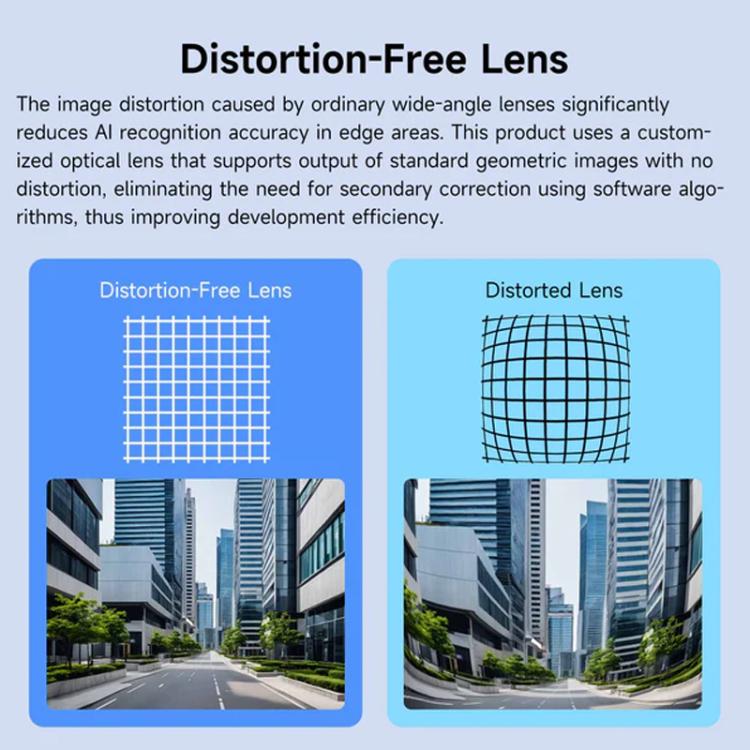

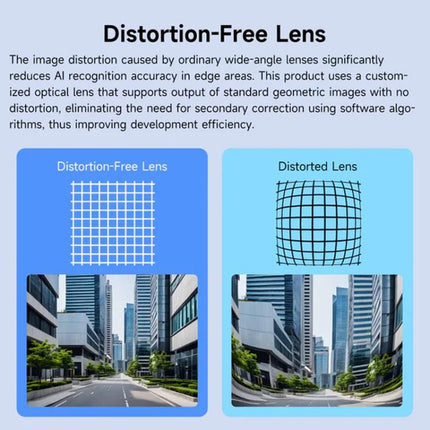

2. Equipped with a 1/2.8-inch 5-megapixel sensor, it provides true 2592x1944 resolution and a 105-degree field of view. The custom optical lens eliminates distortion common in wide-angle cameras, supporting standard geometric image output for precise AI inference without software correction.

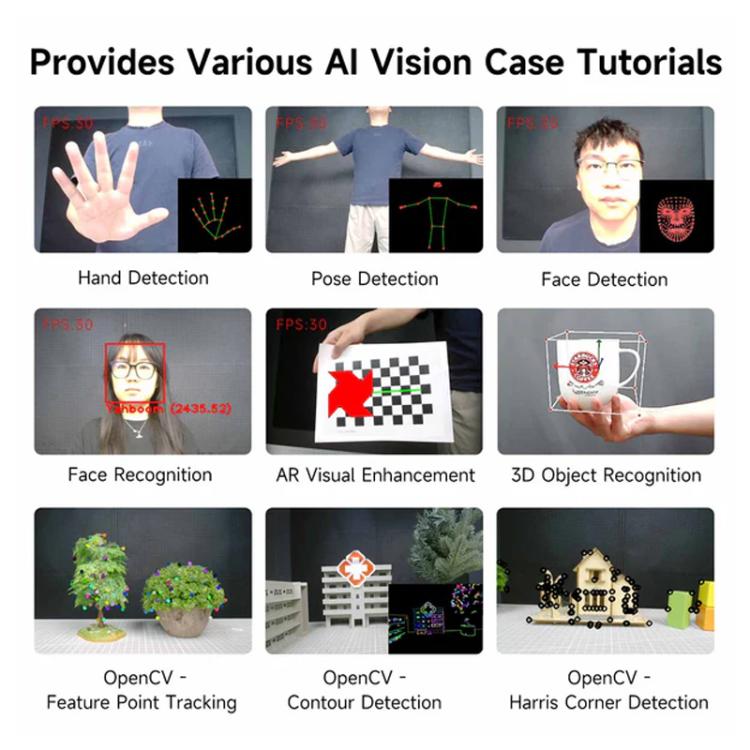

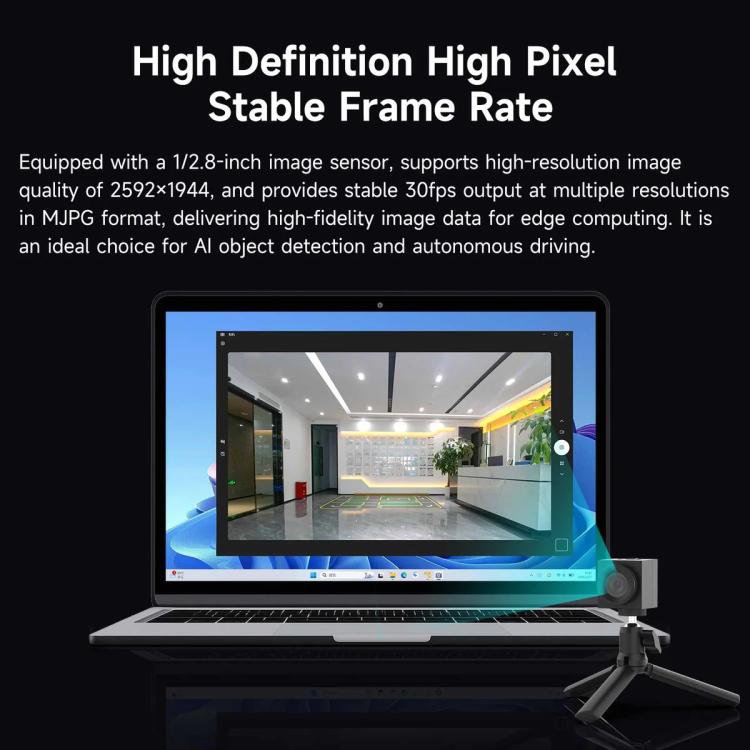

3. It supports stable 30fps image output at maximum resolution in MJPG format, with multiple resolution/frame rate options. This high-throughput imaging ensures smooth video transmission for demanding visual tasks like object tracking, gesture recognition, and autonomous navigation, particularly when used with powerful edge devices like Jetson AGX Orin.

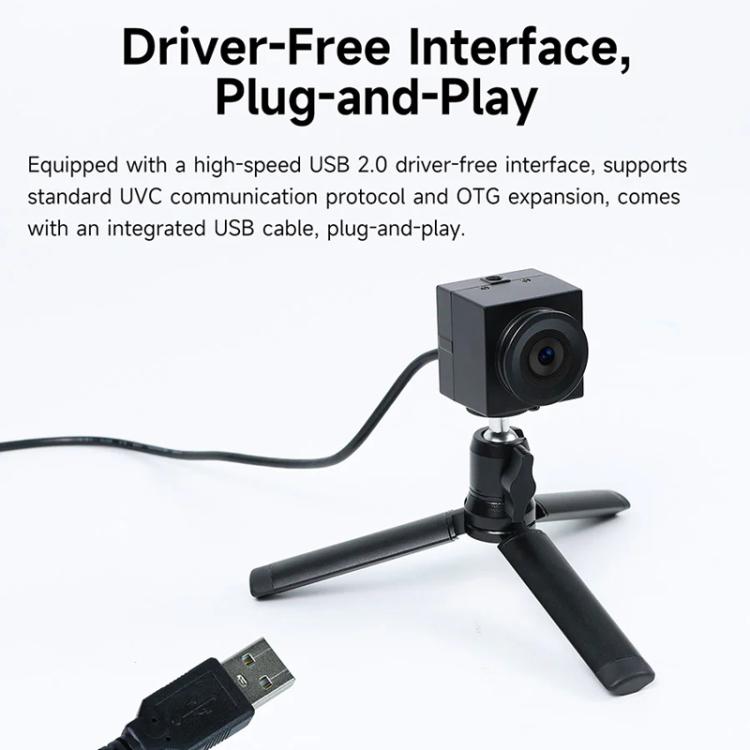

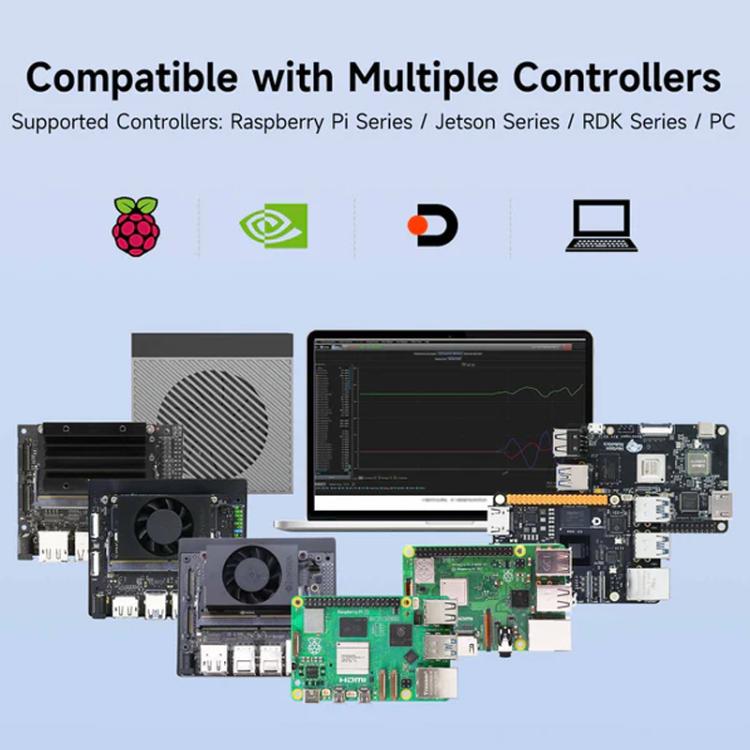

4. Native UVC protocol support enables true plug-and-play on Linux (Raspberry Pi OS, Ubuntu), Windows, and Android platforms. No driver installation is required, allowing seamless integration with Jetson, RDK, and PC systems to reduce development costs.

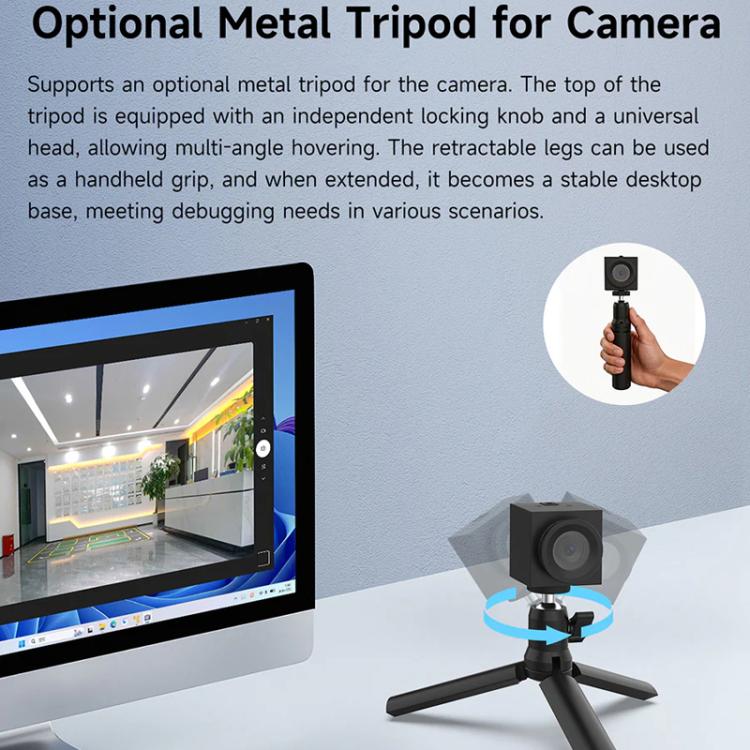

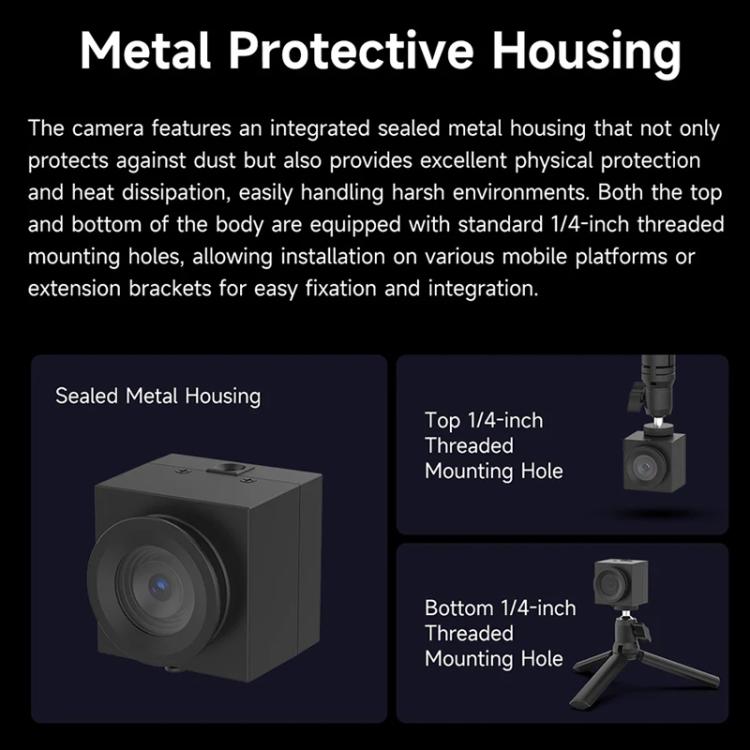

5. The fully enclosed aluminum alloy housing provides IP-level dust protection, passive heat dissipation, and mechanical shielding. Dual 1/4-inch mounting threads on the top and bottom allow flexible attachment to robots, tripods, or custom brackets, ensuring stability for field deployment.

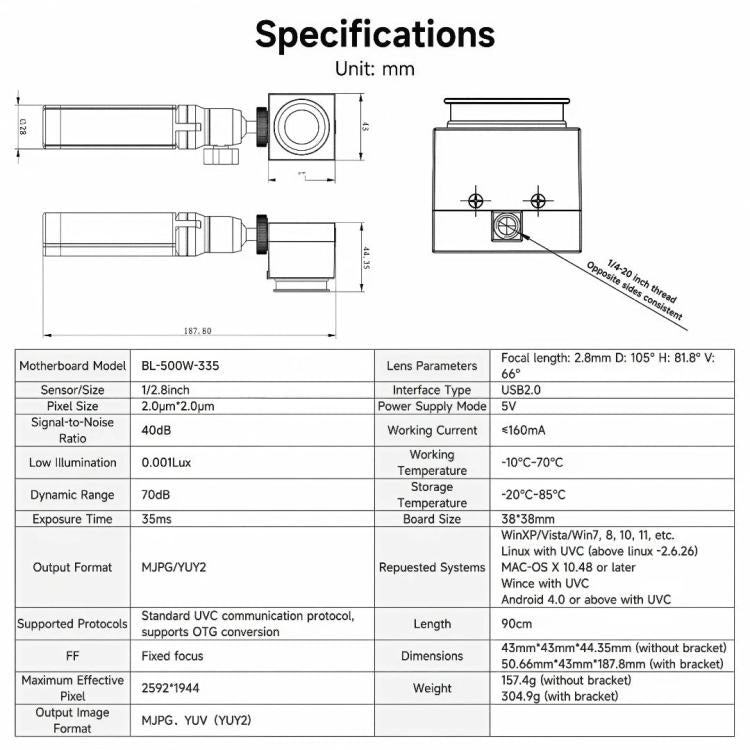

Parameters:
1. Product board model: BL-500W-335
2. Image sensor: 1/2.8 inch
3. Pixel size: 2.0 micrometers x 2.0 micrometers
4. Signal-to-noise ratio: 40 dB
5. Low illumination: 0.001 Lux
6. Dynamic range: 70 dB
7. Exposure time: 35 milliseconds
8. Output format: MJPG/YUY2
9. Supported protocols: Standard UVC communication protocol, supports OTG conversion
10. Focusing method: Fixed focus
11. Maximum effective pixels: 2592 x 1944
12. Output image format: MJPG, YUV (YUY2)
13. Auto exposure control: Supported
14. Auto white balance: Supported
15. Adjustable parameters: Brightness, contrast, hue, saturation, sharpness, gamma, white balance, backlight contrast, gain, exposure, scrolling, low-light compensation

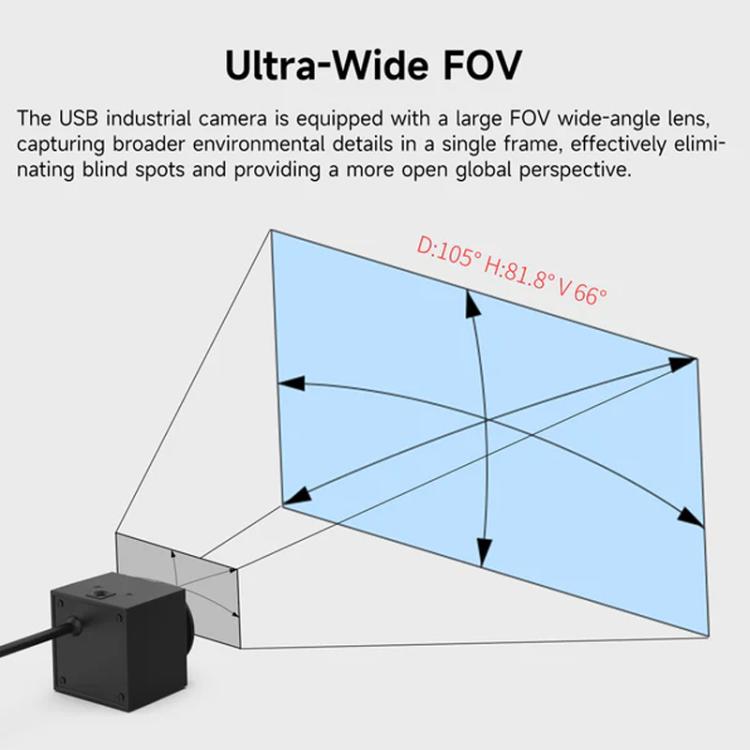

16. Lens parameters: Focal length: 2.8 millimeters, D: 105 degrees, H: 81.8 degrees, V: 66 degrees
17. Interface type: USB 2.0
18. Power supply: 5V
19. Working current: Less than or equal to 160 milliamperes
20. Operating temperature: Minus 10 to 70 degrees Celsius
21. Storage temperature: Minus 20 to 85 degrees Celsius

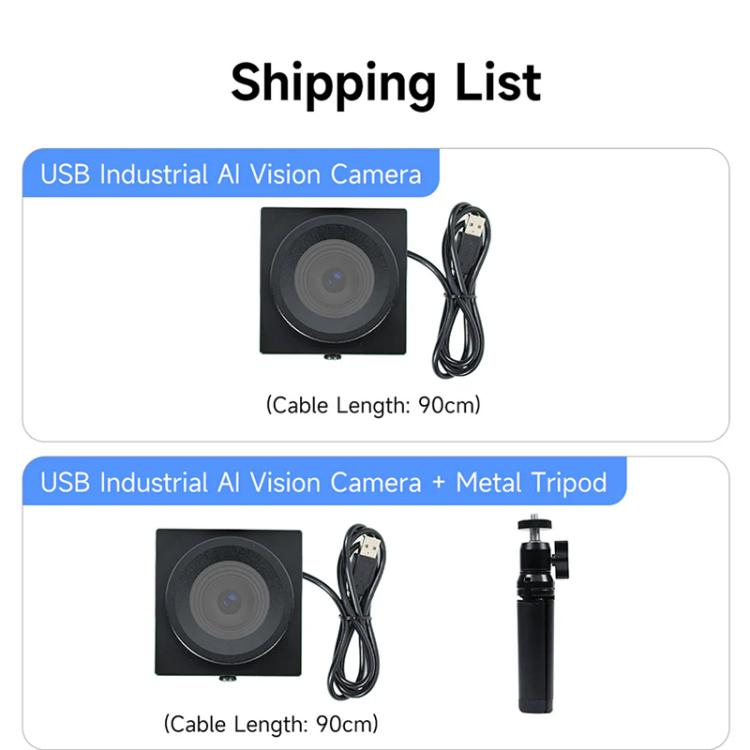

22. Cable length: 90 centimeters


Specification:
Package Weight
One Package Weight 0.20kgs / 0.45lb
One Package Size 10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
Qty per Carton 64
Carton Weight 13.90kgs / 30.64lb
Carton Size 42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch
Loading Container 20GP: 549 cartons * 64 pcs = 35136 pcs
40HQ: 1275 cartons * 64 pcs = 81600 pcs

YAHBOOM Industrial USB AI Vision Camera 5MP Distortion-Free Lens, Above 2K Resolution For Raspberry Pi/Jetson/RDK/PC No Tripod

Product form

SKU: TBD0606696201

  • In stock (Processing Time 1 - 72 hours)

€133,70

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Yahboom USB industrial AI vision camera features 5 million pixels, 2592x1944 ultra-high-definition 2K resolution, and a 105-degree wide-angle field of view. It captures distortion-free images at 30fps (MJPG format), making it ideal for real-time AI target detection and autonomous driving. The camera includes a high-speed driver-free USB 2.0 interface, supports standard UVC communication protocol and OTG extension, and comes with an integrated USB cable for plug-and-play operation. It delivers high-resolution imaging for advanced edge AI and robotics applications.
    2. Equipped with a 1/2.8-inch 5-megapixel sensor, it provides true 2592x1944 resolution and a 105-degree field of view. The custom optical lens eliminates distortion common in wide-angle cameras, supporting standard geometric image output for precise AI inference without software correction.
    3. It supports stable 30fps image output at maximum resolution in MJPG format, with multiple resolution/frame rate options. This high-throughput imaging ensures smooth video transmission for demanding visual tasks like object tracking, gesture recognition, and autonomous navigation, particularly when used with powerful edge devices like Jetson AGX Orin.
    4. Native UVC protocol support enables true plug-and-play on Linux (Raspberry Pi OS, Ubuntu), Windows, and Android platforms. No driver installation is required, allowing seamless integration with Jetson, RDK, and PC systems to reduce development costs.
    5. The fully enclosed aluminum alloy housing provides IP-level dust protection, passive heat dissipation, and mechanical shielding. Dual 1/4-inch mounting threads on the top and bottom allow flexible attachment to robots, tripods, or custom brackets, ensuring stability for field deployment.

    Parameters:
    1. Product board model: BL-500W-335
    2. Image sensor: 1/2.8 inch
    3. Pixel size: 2.0 micrometers x 2.0 micrometers
    4. Signal-to-noise ratio: 40 dB
    5. Low illumination: 0.001 Lux
    6. Dynamic range: 70 dB
    7. Exposure time: 35 milliseconds
    8. Output format: MJPG/YUY2
    9. Supported protocols: Standard UVC communication protocol, supports OTG conversion
    10. Focusing method: Fixed focus
    11. Maximum effective pixels: 2592 x 1944
    12. Output image format: MJPG, YUV (YUY2)
    13. Auto exposure control: Supported
    14. Auto white balance: Supported
    15. Adjustable parameters: Brightness, contrast, hue, saturation, sharpness, gamma, white balance, backlight contrast, gain, exposure, scrolling, low-light compensation
    16. Lens parameters: Focal length: 2.8 millimeters, D: 105 degrees, H: 81.8 degrees, V: 66 degrees
    17. Interface type: USB 2.0
    18. Power supply: 5V
    19. Working current: Less than or equal to 160 milliamperes
    20. Operating temperature: Minus 10 to 70 degrees Celsius
    21. Storage temperature: Minus 20 to 85 degrees Celsius
    22. Cable length: 90 centimeters


    Specification:
    Package Weight
    One Package Weight 0.20kgs / 0.45lb
    One Package Size 10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
    Qty per Carton 64
    Carton Weight 13.90kgs / 30.64lb
    Carton Size 42cm * 34cm * 34cm / 16.54inch * 13.39inch * 13.39inch
    Loading Container 20GP: 549 cartons * 64 pcs = 35136 pcs
    40HQ: 1275 cartons * 64 pcs = 81600 pcs
