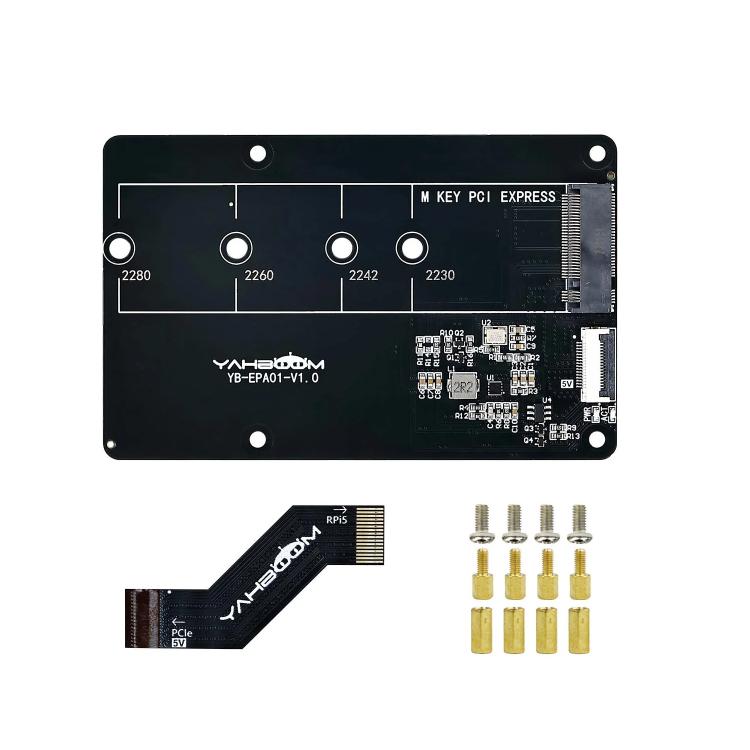

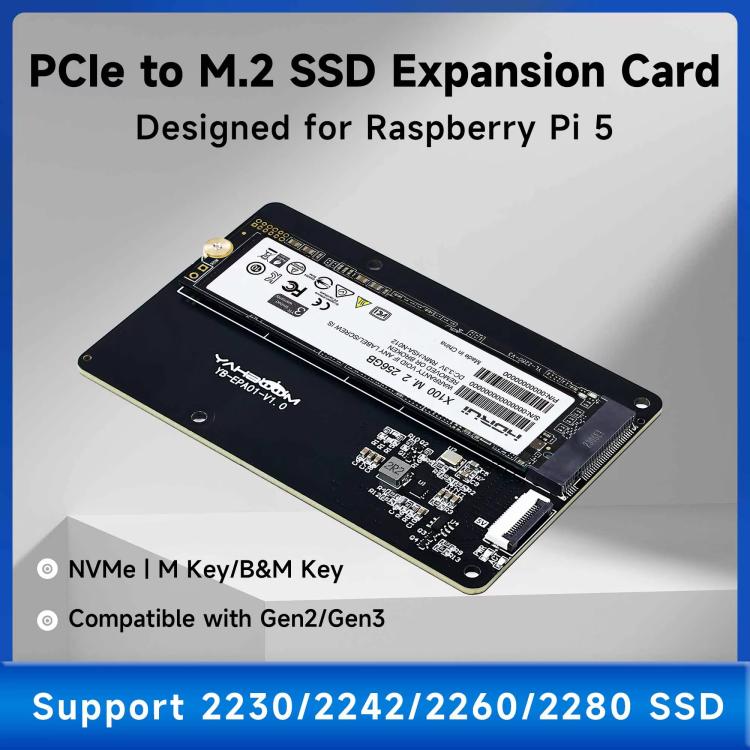

Yahboom PCIe To M.2 Adapter Expansion Board For Raspberry Pi 5 NVMe Expansion Board, Spec: Separate Board


1. This PCIe to M.2 expansion board specially designed for Raspberry Pi 5 is designed to bring more possibilities to your Raspberry Pi projects. With this expansion board, you can easily connect a high-speed M.2 NVMe solid-state drive to the Raspberry Pi 5, greatly increasing data transfer speed and storage capacity. It supports M.2 solid-state drives of various sizes (such as 2230, 2242, 2260 and 2280), and the installation process is simple and intuitive, so you can get started quickly without complicated settings. It not only expands the storage space of Raspberry Pi 5, but also provides better support for your computing tasks, making your Raspberry Pi 5 capable of more complex application scenarios.

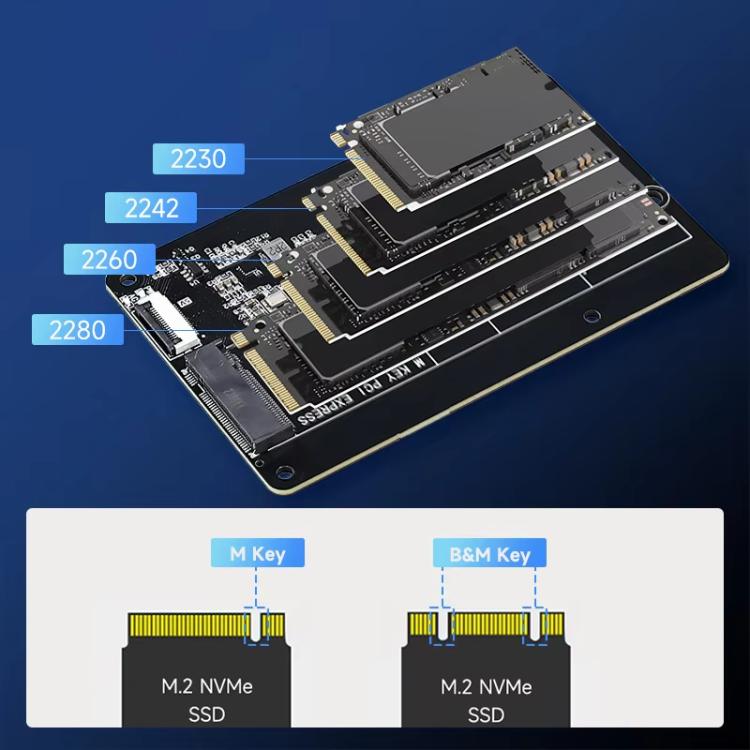

2. Compatible with four sizes of solid state drives (2230/2242/2260/2280).

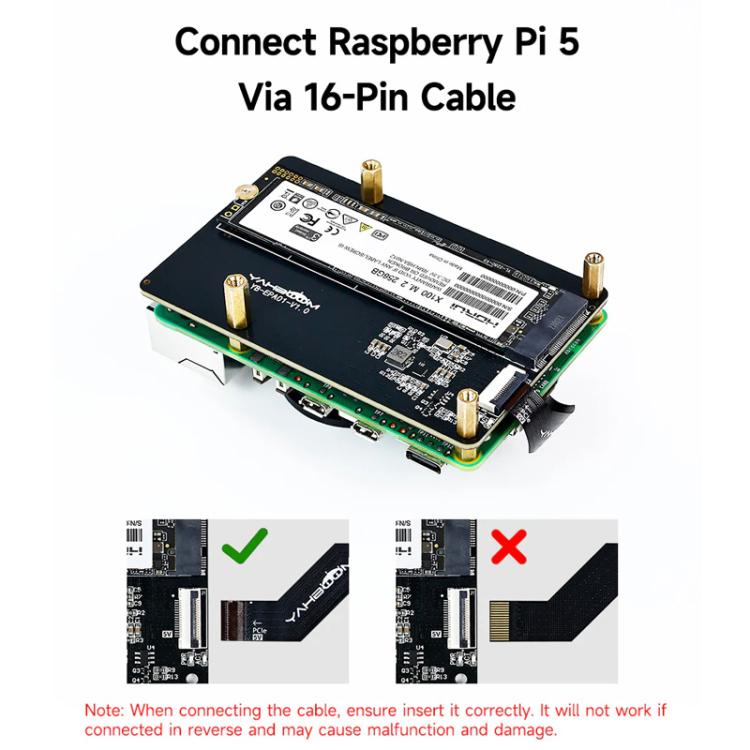

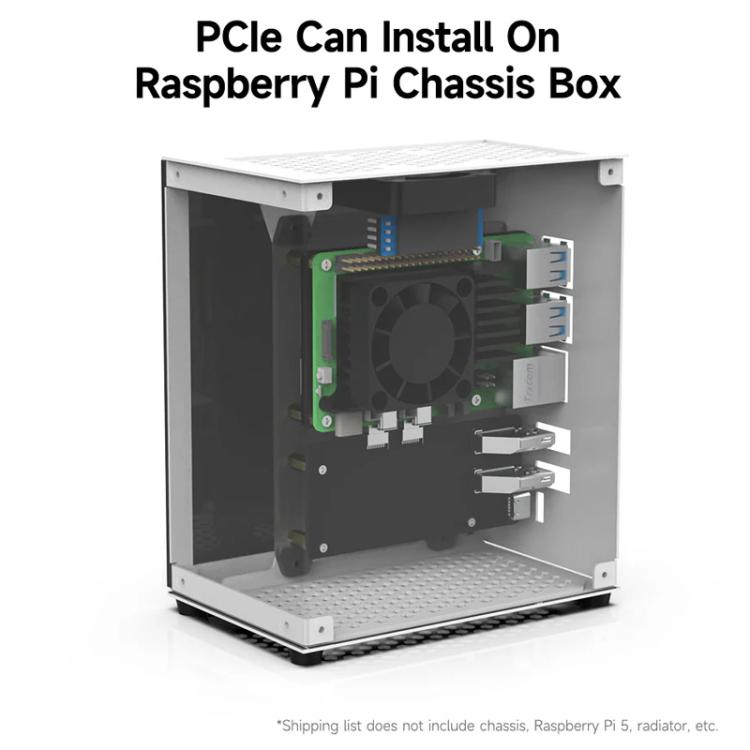

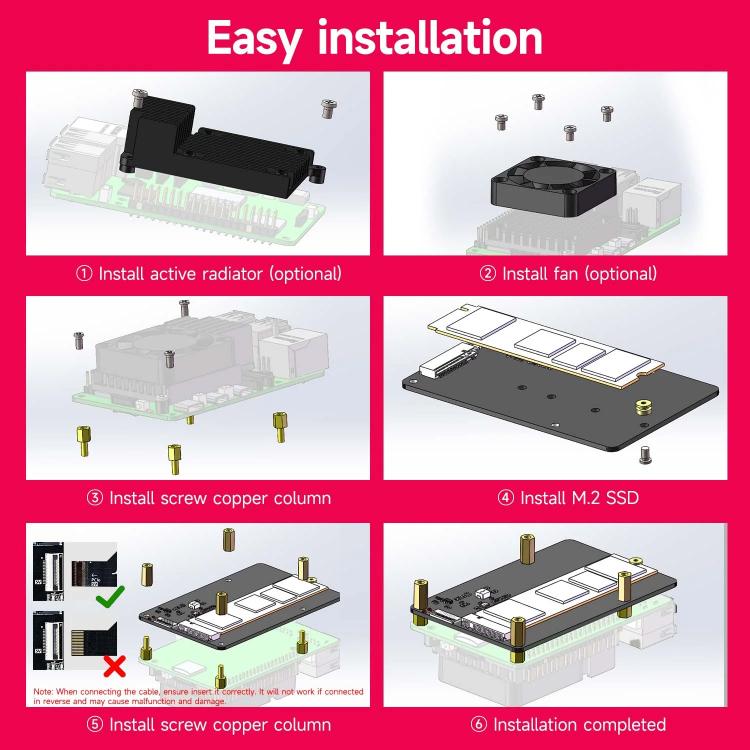

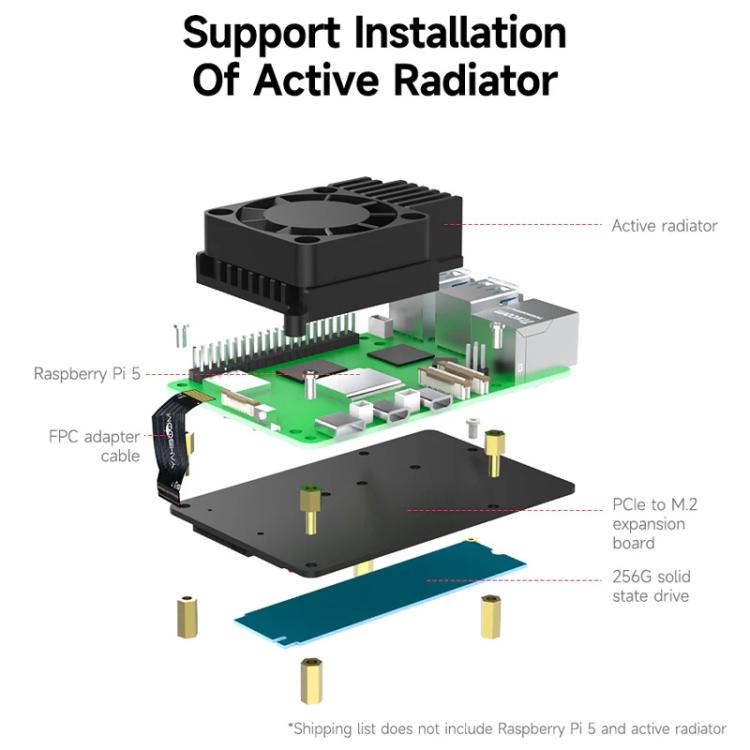

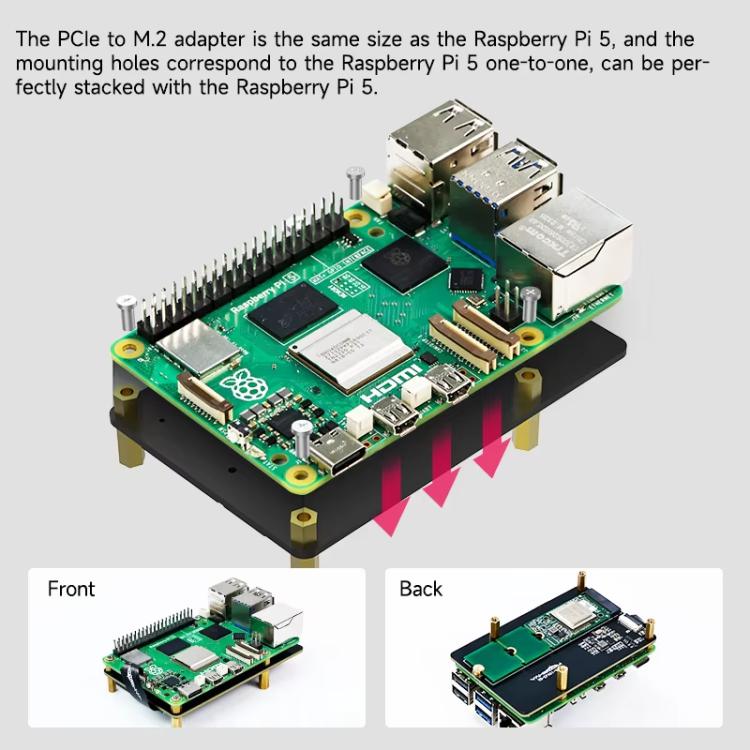

3. The stack is installed on the back of the Raspberry Pi without affecting heat dissipation and case installation.
4. Can improve data transmission speed, suitable for projects with high-speed storage requirements.
5. Using high-quality materials and precision manufacturing processes to ensure stable operation and long-term durability.

Parameters:
1. M.2 M-Key: NVMe protocol, supports M.2 SSD hard disk (2230/2242/2260/2280)
2. SSD function: supports an SSD hard disk to boot the system, and storage expansion or only storage expansion

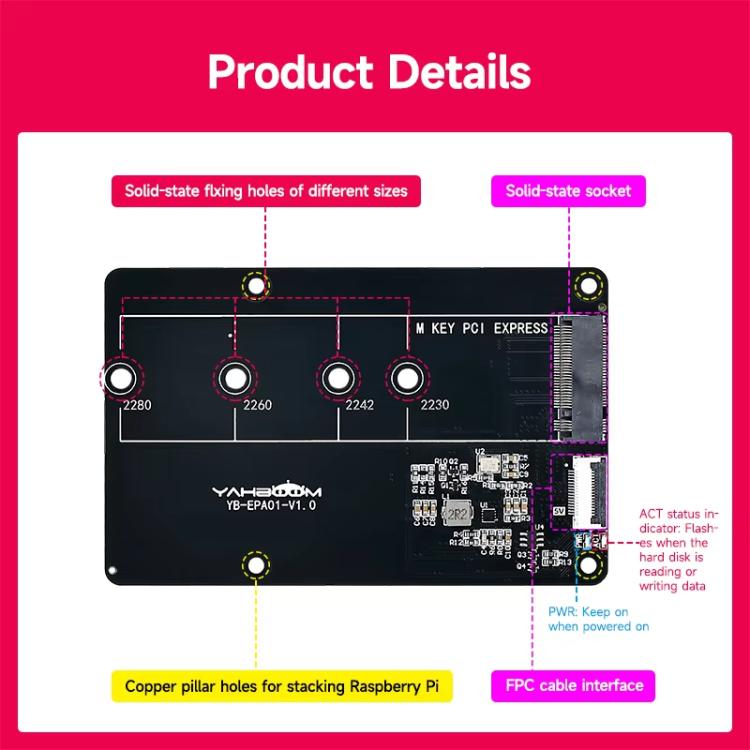

3. LED indicator: power indicator, ACT hard disk status indicator
4. M.2 device power supply current: 3A

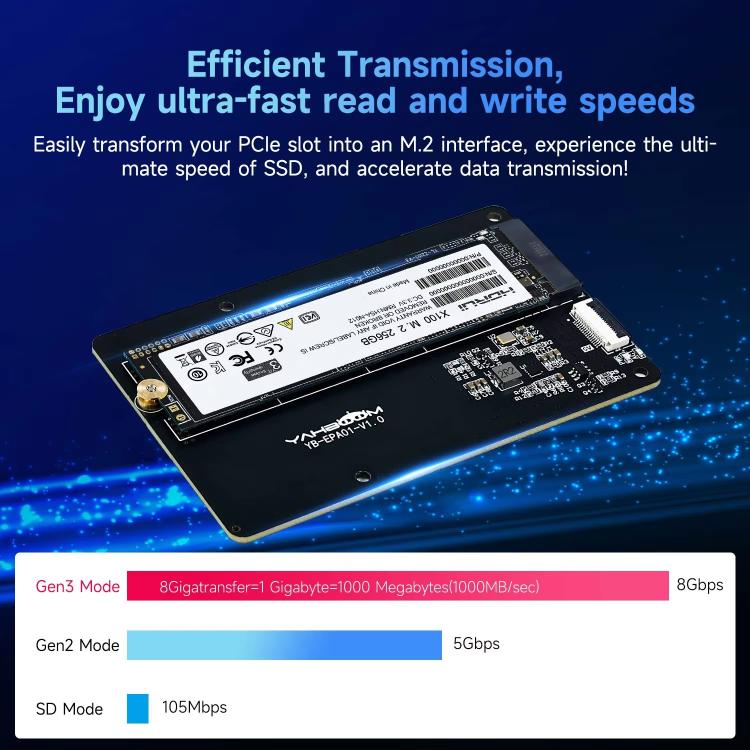

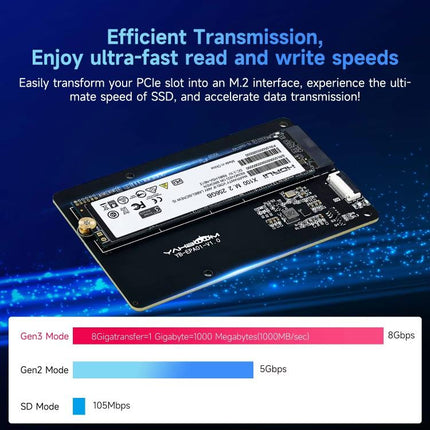

5. PCle 2.0 interface rate: theoretical peak transfer rate 500MB/s
6. Compatible with PCIe standards: Gen2 and Gen3
7. FPC line parameters: 0.5mm pitch FPC line
8. Screw copper column: M2.5 x 10 dual-channel 4; M2.5 x 5+6 single-channel 4

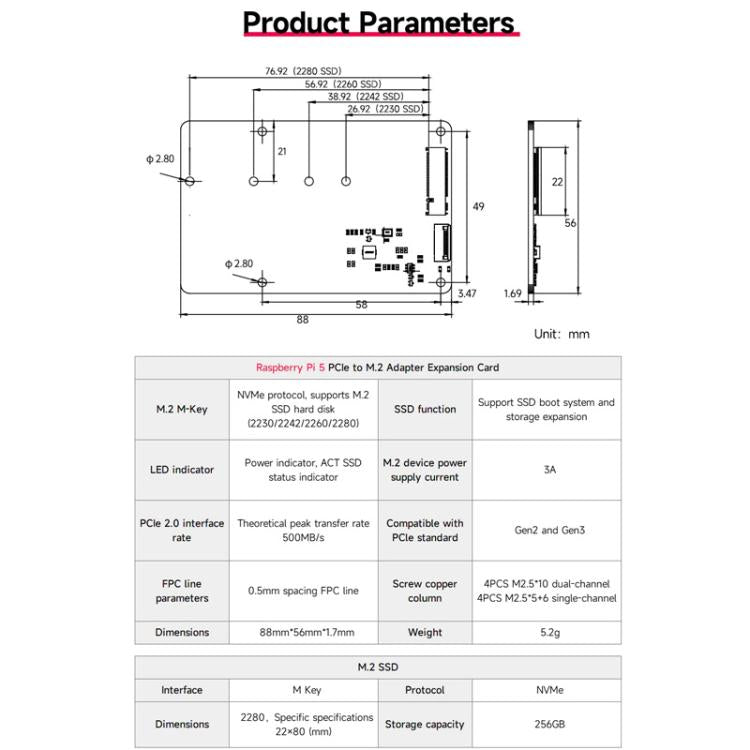

9. Size: 88 mm x 56 mm x 1.7 mm
10. Weight: 5.2g


Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 14cm * 10cm * 5cm / 5.51inch * 3.94inch * 1.97inch
Qty per Carton 54
Carton Weight 5.40kgs / 11.90lb
Carton Size 44cm * 32cm * 32cm / 17.32inch * 12.6inch * 12.6inch
Loading Container 20GP: 591 cartons * 54 pcs = 31914 pcs
40HQ: 1373 cartons * 54 pcs = 74142 pcs

Yahboom PCIe To M.2 Adapter Expansion Board For Raspberry Pi 5 NVMe Expansion Board, Spec: Separate Board

Product form

SKU: TBD0606076401

  • In stock (Processing Time 1 - 72 hours)

€18,29

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. This PCIe to M.2 expansion board specially designed for Raspberry Pi 5 is designed to bring more possibilities to your Raspberry Pi projects. With this expansion board, you can easily connect a high-speed M.2 NVMe solid-state drive to the Raspberry Pi 5, greatly increasing data transfer speed and storage capacity. It supports M.2 solid-state drives of various sizes (such as 2230, 2242, 2260 and 2280), and the installation process is simple and intuitive, so you can get started quickly without complicated settings. It not only expands the storage space of Raspberry Pi 5, but also provides better support for your computing tasks, making your Raspberry Pi 5 capable of more complex application scenarios.
    2. Compatible with four sizes of solid state drives (2230/2242/2260/2280).
    3. The stack is installed on the back of the Raspberry Pi without affecting heat dissipation and case installation.
    4. Can improve data transmission speed, suitable for projects with high-speed storage requirements.
    5. Using high-quality materials and precision manufacturing processes to ensure stable operation and long-term durability.

    Parameters:
    1. M.2 M-Key: NVMe protocol, supports M.2 SSD hard disk (2230/2242/2260/2280)
    2. SSD function: supports an SSD hard disk to boot the system, and storage expansion or only storage expansion
    3. LED indicator: power indicator, ACT hard disk status indicator
    4. M.2 device power supply current: 3A
    5. PCle 2.0 interface rate: theoretical peak transfer rate 500MB/s
    6. Compatible with PCIe standards: Gen2 and Gen3
    7. FPC line parameters: 0.5mm pitch FPC line
    8. Screw copper column: M2.5 x 10 dual-channel 4; M2.5 x 5+6 single-channel 4
    9. Size: 88 mm x 56 mm x 1.7 mm
    10. Weight: 5.2g


    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 14cm * 10cm * 5cm / 5.51inch * 3.94inch * 1.97inch
    Qty per Carton 54
    Carton Weight 5.40kgs / 11.90lb
    Carton Size 44cm * 32cm * 32cm / 17.32inch * 12.6inch * 12.6inch
    Loading Container 20GP: 591 cartons * 54 pcs = 31914 pcs
    40HQ: 1373 cartons * 54 pcs = 74142 pcs
